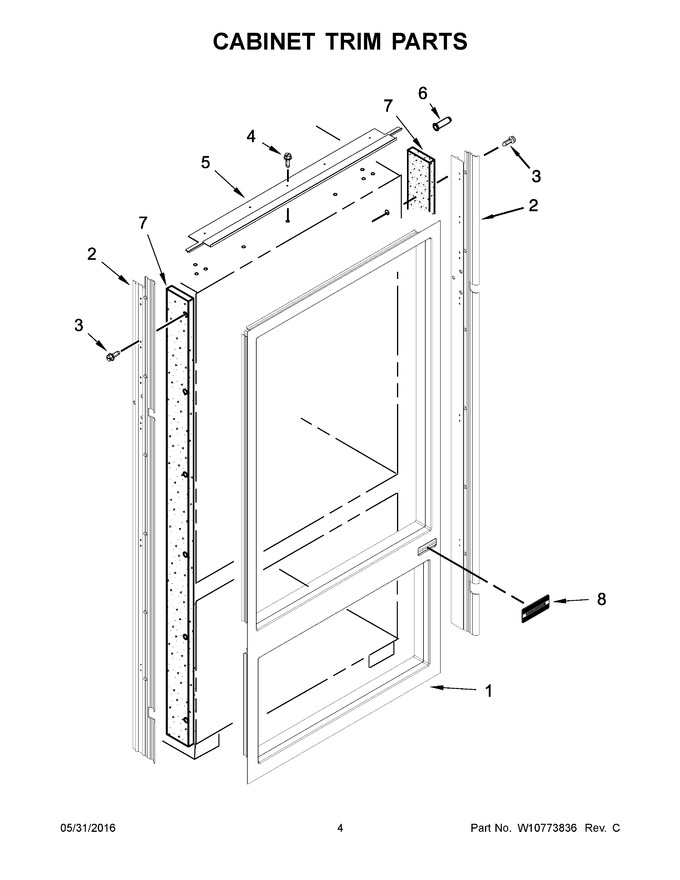

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Breaker, Trim (not Serviced) |
|
- | |||||
| 2 | W11173662 | Trim, Cabinet (side) Left Hand (aluminum) (Replaces: W10568007) |
|
Immediately | $ 252.34 | ||||
| 3 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.67 | |||||
| 4 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 5 | 2314020 | Trim, Cabinet (top) Left Hand (aluminum) |
|
- | |||||
| 6 | WPW10121451 | Insert, Blind Threaded (Replaces: W10121451) |
|
Immediately | $ 7.65 | ||||
| 7 | 2005925 | Seal, Side Trim |
|
$ 83.72 | |||||
| 8 | W10757498 | Cover, Door Hinge (white) |
|
- | |||||
| 2A | W11173663 | Trim, Cabinet (side) Right Hand (aluminum) (Replaces: W10568005) |
|
$ 252.57 | |||||
| 5A | 2314019 | Trim, Cabinet (top) Right Hand (aluminum) |
|
Immediately | $ 113.85 |
