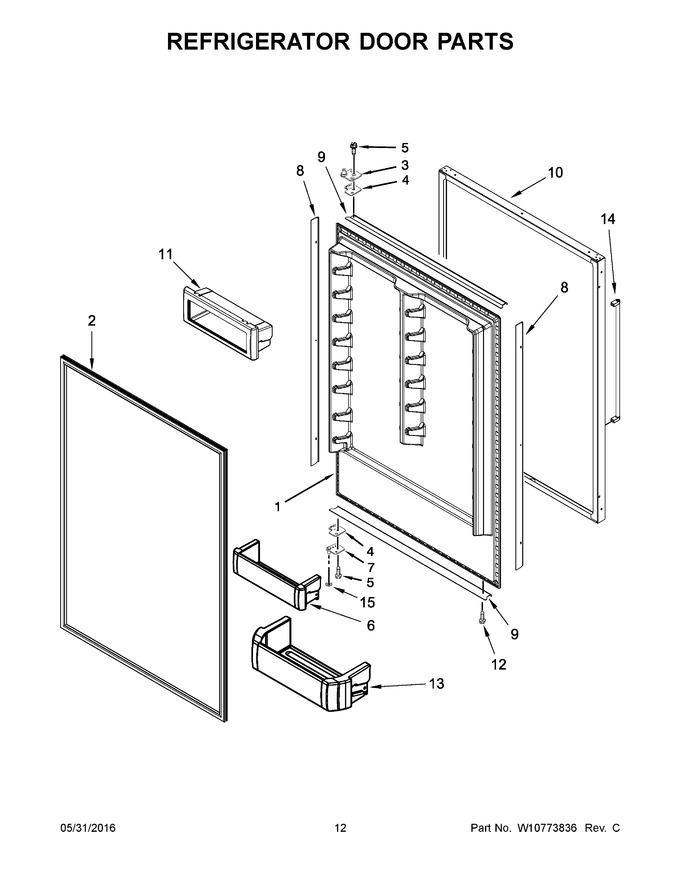

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10782342 | Door, Refrigerator (includes Item 2) (Replaces: W10707737) |
|
$ 750.74 | |||||
| 2 | W10803136 | Gasket, Door (grey) (Replaces: W10609679) |
|
$ 349.58 | |||||
| 3 | W11673500 | Assembly, Hinge (top) (Replaces: W10485980) |
|
Immediately | $ 108.07 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 6 | W11590561 | Bin, Shallow (Replaces: W10323603) |
|
$ 94.23 | |||||
| 7 | 2316807 | Assembly, Bottom Hinge (left Hand) |
|
$ 216.30 | |||||
| 8 | W10672076 | Spacer, Door (side) |
|
- | |||||
| 9 | W10609682 | Spacer, Door (top And Bottom) |
|
$ 147.14 | |||||
| 10 | W10801506 | Skin, Door (stainless) (Replaces: W10541587) |
|
$ 1,124.31 | |||||
| 11 | W10323044 | Assembly, Utility Bin |
|
$ 132.58 | |||||
| 12 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 13 | W10323749 | Bin, Gallon |
|
$ 136.84 | |||||
| 14 | W10783284 | Handle, Door (stainless) (Replaces: W10541592) |
|
$ 216.71 | |||||
| 15 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 7A | 2316805 | Assembly, Bottom Hinge (right Hand) |
|
$ 214.92 |
