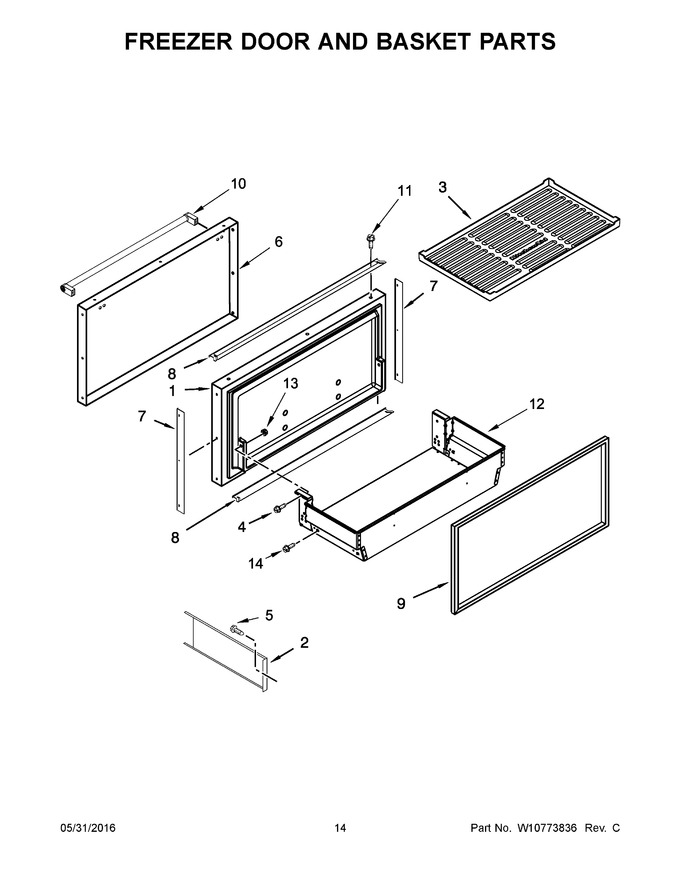

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10782351		Door, Freezer (includes Item 9)   (Replaces: W10707735)				$ 924.20
2	2317101		Divider, Basket		Appelez-nous	-
3	W10665412		Mat, Basket		Appelez-nous	-
4	W10761334		Screw				$ 13.00
5	WP488234		Screw   (Replaces: W10135792)				$ 7.08
6	W11797626		Skin, Door (stainless)   (Replaces: W10541579)		Appelez-nous	-
7	W10609690		Spacer, Door Edge (side)		Appelez-nous	-
8	W10609689		Spacer, Door Edge (top And Bottom)				$ 148.09
9	W11625085		Gasket, Door (grey)   (Replaces: W10609687)			Immediately	$ 319.38
10	W10783283		Handle, Door (stainless)   (Replaces: W10541591)				$ 215.64
11	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 11.42
12	W10774207		Assembly, Freezer Basket		Appelez-nous	-
13	W10771111		Nut			Immediately	$ 20.25
14	W10109030		Screw				$ 15.35
