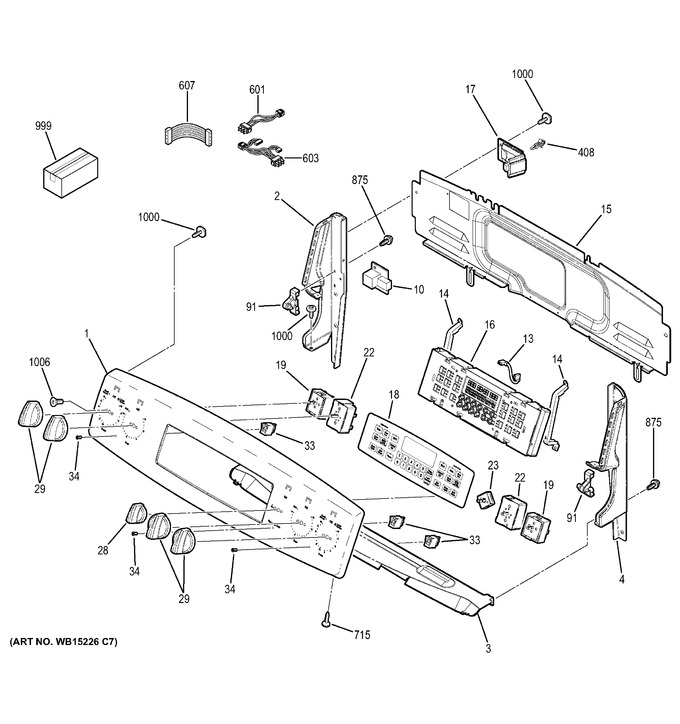

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	229C6305P001		Label Wire Diagram		Appelez-nous	-
1	WB36X20024		Trim Cntrl Asm		Appelez-nous	-
2	WB07X20042		Plate End Lt (gy)		Appelez-nous	-
3	WB02T10468		Shield Heat Bkgd		Appelez-nous	-
4	WB07X20043		Plate End Rt (gy)		Appelez-nous	-
10	WB27X21461		Board Rj45 Connector		Appelez-nous	-
13	WB18T10506		Jumper		Appelez-nous	-
14	WB34X20004		Bracket Control Rt		Appelez-nous	-
14	WB34X20003		Bracket Control Lt		Appelez-nous	-
15	WB34X20932		Cover Control		Appelez-nous	-
16	WB27X21627		Control Board T012 Ele		Appelez-nous	-
17	WB27X20933		Housing Rj45 Asm		Appelez-nous	-
18	WB27X20023		Faceplate Graphics (dg)		Appelez-nous	-
19	WB24T10153		Switch Infinite Control		Appelez-nous	-
22	WG02F00292		Control Infinite Switch   (Replaces: WB24T10029)			Immediately	$ 67.07
23	WB24X21736		Switch Rotary		Appelez-nous	-
28	WS01L12267		Knob Asm   (Replaces: WB03T10336)				$ 62.03
29	WS01L12266		Knob Asm   (Replaces: WB03T10337)			Immediately	$ 71.00
33	WG02F04788		Light Indicator   (Replaces: WB27T10668)			Immediately	$ 15.88
34	WB25T10103		Lens		Appelez-nous	-
91	WB10T10116		Pin Rangetop Hinge		Appelez-nous	-
408	WB02T10477		Pcb Standoff		Appelez-nous	-
601	WB18X20001		Harness Wire Infinite		Appelez-nous	-
603	WB18X21396		Harness Wire Ui Com		Appelez-nous	-
607	WB18X20006		Harness Wire Cat Module		Appelez-nous	-
715	WD2X430		Screw		Appelez-nous	-
875	WB01T10046		Wz4x245d		Appelez-nous	-
999	31-17064		Pm Manual Mini & Wd Asm		Appelez-nous	-
999	WB02X11121		Cleaner Glass		Appelez-nous	-
999	31-10818		Pm Instruction Install		Appelez-nous	-
999	31-10817		Pm Instructions Install		Appelez-nous	-
999	49-80692		Pm Owners Manual		Appelez-nous	-
1000	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
1006	WB01X23501		Scr 8-32 Tt Flp .270		Appelez-nous	-
