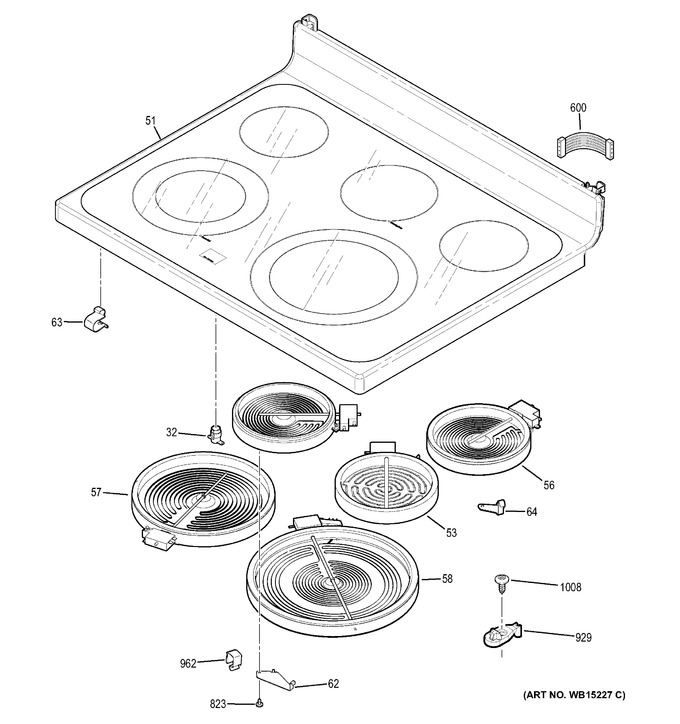

2 - Cooktop
3 - Upper Oven
4 - Lower Oven
5 - Upper Door
6 - Lower Door
7 - Door Lock
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | WB25X20005 | Light Indicator Pilot |
|
- | |||||
| 51 | WB62X20857 | Rangetop Glass Asm (dg) |
|
- | |||||
| 53 | WG02F07437 | Element Radiant 6 Warmer (Replaces: WB30X20871) |
|
$ 146.24 | |||||
| 56 | WG02F02056 | Element Radiant 5.5 In (Replaces: WB30T10145) |
|
Immediately | $ 148.15 | ||||
| 57 | WS01F01177 | Element Radiant 9 Dual (Replaces: WB30T10133) |
|
Immediately | $ 110.73 | ||||
| 58 | WS01F01164 | Element Haliant 12 In (Replaces: WB30T10130) |
|
Immediately | $ 115.92 | ||||
| 62 | WB02X20940 | Bracket Radiant Element |
|
- | |||||
| 63 | WS01A03252 | Spring Radiant Element (Replaces: WB09T10013) |
|
Immediately | $ 4.37 | ||||
| 64 | WB02X20902 | Bracket Radiant Element |
|
- | |||||
| 600 | WB18X20008 | Harness Wire Maintop |
|
- | |||||
| 823 | WS01A00445 | Screw Ground (Replaces: WB1X1261) |
|
$ 13.90 | |||||
| 929 | WB02T10026 | Maintop Strike |
|
- | |||||
| 962 | WB02T10177 | Clip Cable |
|
- | |||||
| 1008 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- |
