SELECT A DIAGRAM

1 - Control Panel


2 - Cooktop


3 - Upper Oven


4 - Lower Oven


5 - Upper Door


6 - Lower Door


7 - Door Lock

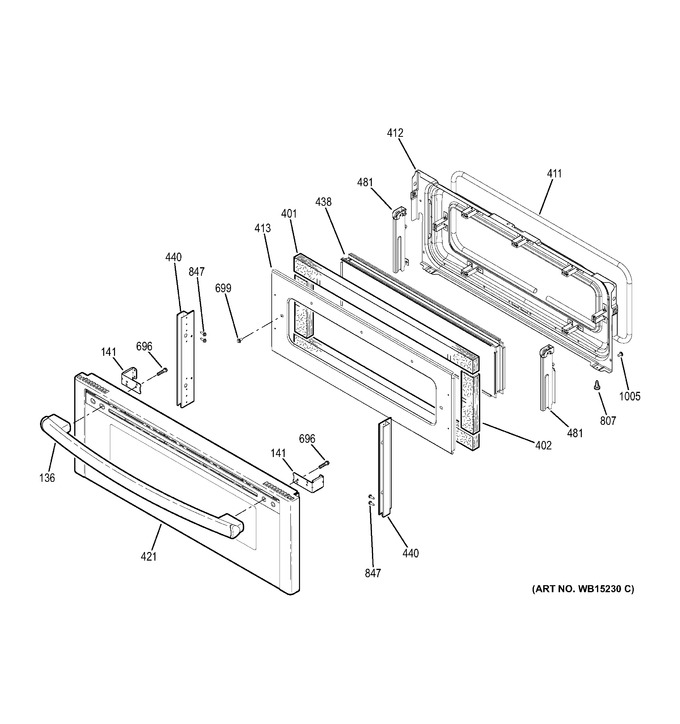

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
136	WS01L15020		Handle And End Cap Asm   (Replaces: WB15T10222)			Immediately	$ 68.84
141	WB37X20012		Spacer Bracket Handle		Appelez-nous	-
401	WB35T10167		Insulation Ovn Dr Top Up		Appelez-nous	-
402	WB35T10168		Insulation Ov Dr Uprside		Appelez-nous	-
411	WB04T10077		Gasket Ovn Door		Appelez-nous	-
412	WB63X20854		Liner Oven Door Asm		Appelez-nous	-
413	WB56T10318		Retainer Insln Oven Dr		Appelez-nous	-
421	WB56X20150		Panel Asm Bonded Upr(ss)		Appelez-nous	-
438	WG02L02979		Window Pack Asm Upr   (Replaces: WB56T10244)				$ 113.54
440	WB56X21404		Frame Door Side		Appelez-nous	-
481	WB10T10100		Receiver Hinge Upr (rt)		Appelez-nous	-
481	WB10T10101		Receiver Hinge Upr ( Lt)		Appelez-nous	-
696	WB01T10132		Screw 10-32 Hex 1 3/4 In		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
807	WB01T10084		Scr 8 - 32 X .343 Trs S		Appelez-nous	-
847	WB01T10126		Scr 8-18 Ab Hxw 1/2 S		Appelez-nous	-
1005	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.97

    View Diagram in Separate Window       Print Part List
