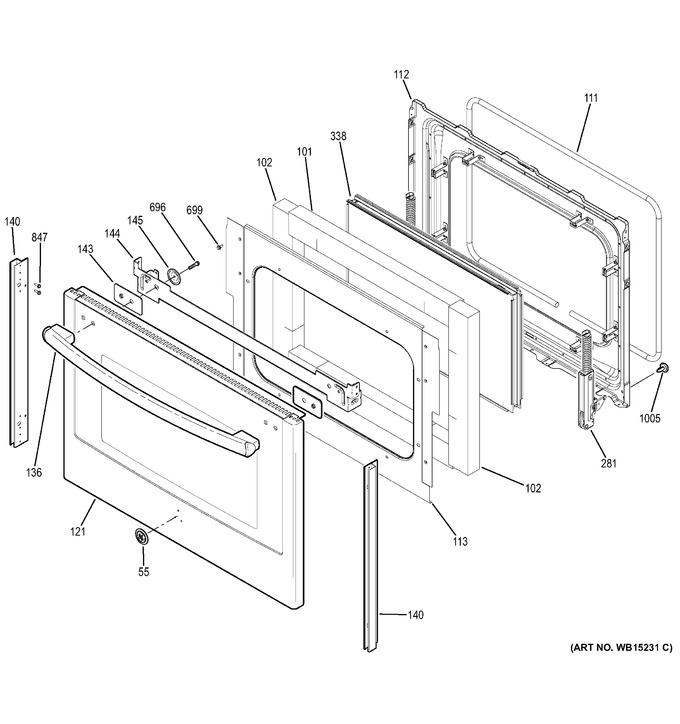

SELECT A DIAGRAM

1 - Control Panel


2 - Cooktop


3 - Upper Oven


4 - Lower Oven


5 - Upper Door


6 - Lower Door


7 - Door Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
55	WS01A01830		Badge Ge   (Replaces: WB02T10589)				$ 14.29
101	WB35T10072		Insulation Ovn Dr Top		Appelez-nous	-
102	WB35K10025		Insulation Oven Dr Sde		Appelez-nous	-
111	WB04T10076		Gasket Ovn Dr		Appelez-nous	-
112	WB63X20852		Liner Oven Dr Asm		Appelez-nous	-
113	WB02T10371		Retainer Insln Ovn Dr		Appelez-nous	-
121	WB56X20026		Panel Asm Bonded Lwr(ss)		Appelez-nous	-
136	WS01L15020		Handle And End Cap Asm   (Replaces: WB15T10222)			Immediately	$ 68.84
140	WB56X21397		Frame Door Side		Appelez-nous	-
143	WB02X21398		Spacer Bracket Handle		Appelez-nous	-
144	WB34X20853		Bracket Handle Door		Appelez-nous	-
145	WB02T10065		Spacer Dr Handle		Appelez-nous	-
281	WB10X25065		Hinge Door Rt		Appelez-nous	-
281	WB10X25064		Hinge Door Lt		Appelez-nous	-
338	WB56X22160		Window Pack Asm		Appelez-nous	-
696	WB01T10132		Screw 10-32 Hex 1 3/4 In		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
847	WB01T10126		Scr 8-18 Ab Hxw 1/2 S		Appelez-nous	-
1005	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.97

    View Diagram in Separate Window       Print Part List
