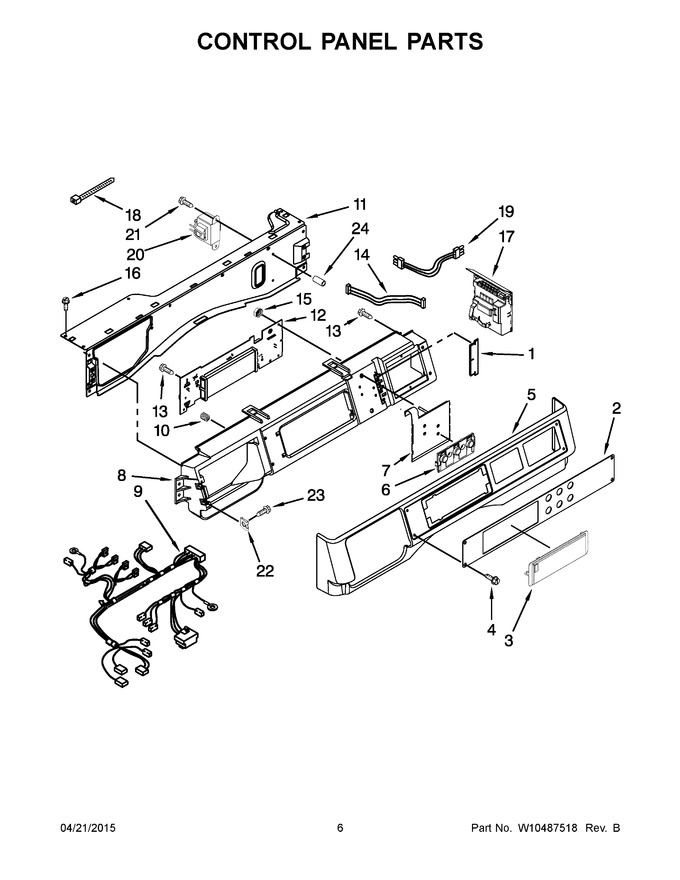

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10187276		Seal, Console		Appelez-nous	-
2	W10607836		Facia/overlay   (Replaces: W10137440)		Appelez-nous	-
3	W11637765		Cover, Display   (Replaces: W10267645)				$ 66.28
4	WPW10137457		Screw   (Replaces: W10137457)				$ 6.94
5	W10779084		Console, Outer   (Replaces: W10137458)				$ 131.70
6	W10803340		Push Button   (Replaces: W10137455)				$ 117.38
7	WPW10135255		Switch, Membrane & Backer Plate   (Replaces: W10135255)				$ 208.96
8	W11028369		Console, Inner   (Replaces: W10137426)				$ 320.33
9	W10298333		Harness, Wiring (upper Main)		Appelez-nous	-
10	WPW10189313		Insert   (Replaces: W10189313)				$ 8.79
11	W10294428		Bracket, Console		Appelez-nous	-
12	WPW10311190		User Interface   (Replaces: W10311190)				$ 548.05
13	489136		Screw				$ 10.29
14	W10155150		Harness, Test				$ 3.20
15	WPW10139046		Nut   (Replaces: W10139046)				$ 8.79
16	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 10.94
17	WPW10732327		Microcomputer, Machine Control   (Replaces: W10525374)			Immediately	$ 285.10
18	WP2205813		Tie, Cable   (Replaces: 3429563)				$ 7.72
19	W10837604		Harness, Wiring (console Uic)   (Replaces: W10448626)		Appelez-nous	-
20	WPW10131839		Transformer   (Replaces: W10131839)			Immediately	$ 133.55
21	8540329		Screw		Appelez-nous	-
22	WP9781235		Nut, "u   (Replaces: 9781235)				$ 11.96
23	WPW10131119		Screw M4x13   (Replaces: W10131119)				$ 6.95
24	W10018050		Cap Plug		Appelez-nous	-
NI	W10232997		Ccu To Hot Fill Valve (2 Pole)				$ 41.87
NI	W10179481		Coin Drop To Ccu (4 Pole)		Appelez-nous	-
NI	N/P		The Following Cable Sets: (not Illustrated)		Appelez-nous	-
NI	W10232996		Ccu To Cold Fill Valve (3 Pole)				$ 53.43
