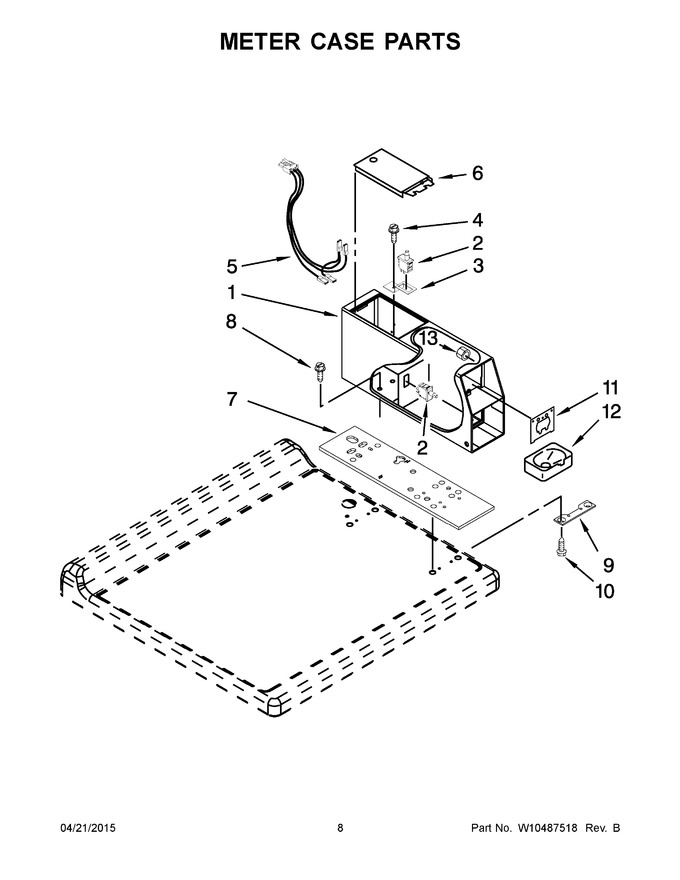

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10171132		Meter Case   (Replaces: W10171132)				$ 235.54
2	WPW10131838		Switch, Vault Service Door   (Replaces: W10131838)				$ 23.91
3	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
4	WPW10139210		Screw   (Replaces: W10139210)				$ 7.50
5	W11096090		Wire, Harness Sensor Switch   (Replaces: W10211244)				$ 12.76
6	W11283272		Assembly, Service Door   (Replaces: 3351136)				$ 105.88
7	W10137448		Cushion, Meter Case		Appelez-nous	-
8	W11715721		Bolt   (Replaces: 3349065)				$ 7.12
9	3347825		Plate, Mounting		Appelez-nous	-
10	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
11	279950		Plate, Adapter   (Replaces: 3954761)			Immediately	$ 28.89
12	WP385421		Funnel, Coin   (Replaces: 385421)			Immediately	$ 74.20
13	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 7.76
