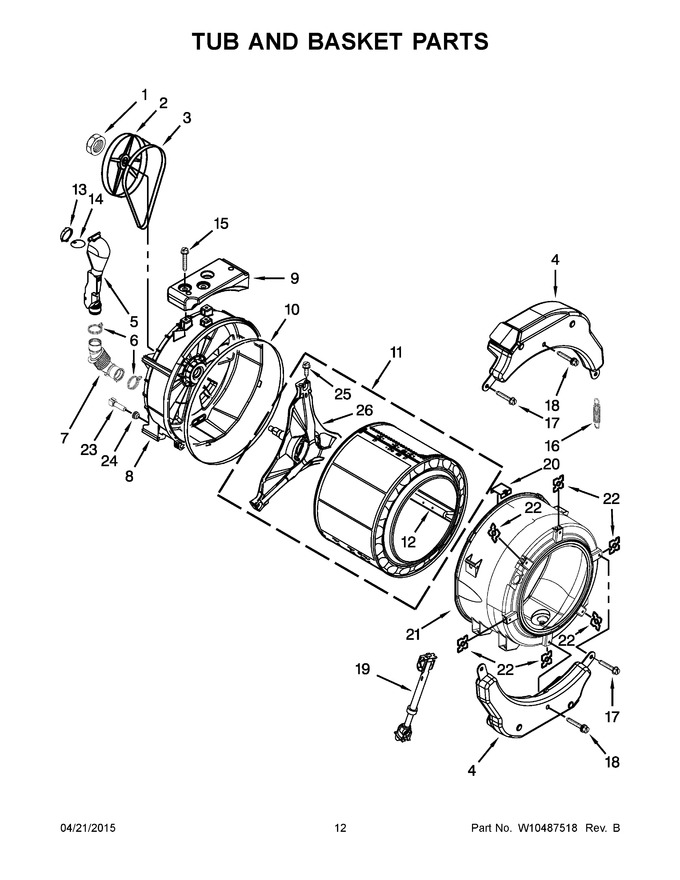

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10283361 | Nut, Pulley (Replaces: 8533999) |
|
Immediately | $ 79.11 | ||||
| 2 | WP8540088C | Pulley (Replaces: 8540088C) |
|
$ 196.32 | |||||
| 3 | WPW10260319 | Belt, Drive (Replaces: W10260319) |
|
Immediately | $ 68.92 | ||||
| 4 | WPW10223198 | Counterweight, Front (Replaces: W10223198) |
|
Immediately | $ 178.91 | ||||
| 5 | W10142720 | Pipe, Ventilation |
|
$ 105.17 | |||||
| 6 | 8540010 | Clamp, Vent Hose |
|
$ 11.18 | |||||
| 7 | W11398765 | Hose, Exhaust (Replaces: 8540019) |
|
$ 30.18 | |||||
| 8 | W11036325 | Tub, Rear (Replaces: W10303574) |
|
$ 1,665.45 | |||||
| 9 | WPW10200747 | Counterweight, Rear (Replaces: W10200747) |
|
$ 161.12 | |||||
| 10 | WPW10111158 | Gasket, Tub (Replaces: 8540090) |
|
Immediately | $ 99.13 | ||||
| 11 | W11036325 | Basket, Complete (Replaces: W10303571) |
|
$ 1,665.45 | |||||
| 12 | W11700547 | Baffle, Tub (Replaces: W10118982) |
|
$ 33.47 | |||||
| 13 | W10142721 | Ventilation, Connector |
|
- | |||||
| 14 | W10142722 | Flap, Ventilation |
|
- | |||||
| 15 | W11028021 | Screw, Rear Counterweight (Replaces: W10246531) |
|
$ 7.92 | |||||
| 16 | 280159 | Spring, Suspension (Replaces: W10010360) |
|
$ 106.76 | |||||
| 17 | W11685857 | Screw (Replaces: W10094780) |
|
$ 14.10 | |||||
| 18 | WPW10259288 | Bolt Assembly, Counterweight Center Hole (Replaces: W10259288) |
|
$ 13.31 | |||||
| 19 | W10822553 | Absorber, Shock (Replaces: W10015830) |
|
Immediately | $ 83.35 | ||||
| 20 | WP8540092 | Clamp, Tub (Replaces: 8540092) |
|
$ 7.59 | |||||
| 21 | W10312454 | Tub, Front (Replaces: W10266965) |
|
$ 764.31 | |||||
| 22 | WP8182512 | Nut, Push-in (Replaces: 8540072) |
|
Immediately | $ 6.95 | ||||
| 23 | WPW10467289 | Control, Negative Thermistor (Replaces: W10176659) |
|
Immediately | $ 47.80 | ||||
| 24 | W11590578 | Seal, Rubber (Replaces: 8540766) |
|
Immediately | $ 7.97 | ||||
| 25 | WP8540382 | Screw (Replaces: 8540382) |
|
$ 6.95 | |||||
| 26 | 8540342 | Assembly, Crosspiece |
|
- |
