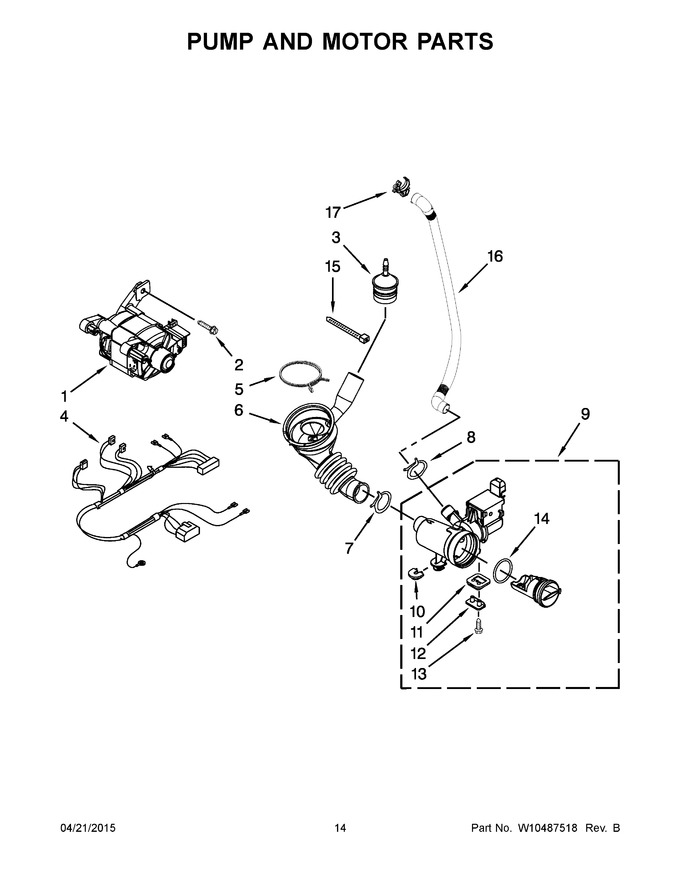

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11191299 | Motor, Drive (Replaces: W10171927) |
|
$ 456.72 | |||||
| 2 | 8540134 | Bolt, Motor |
|
$ 14.12 | |||||
| 3 | WPW10405608 | Trap, Air (Replaces: W10405608) |
|
Immediately | $ 7.91 | ||||
| 4 | WPW10201879 | Harness, Motor (Replaces: W10201879) |
|
$ 169.87 | |||||
| 5 | WP696392 | Clamp, Hose (Replaces: 8181734) |
|
$ 9.08 | |||||
| 6 | W11366249 | Hose, Tub To Pump (Replaces: 8540012) |
|
Immediately | $ 51.94 | ||||
| 7 | WP616099 | Clamp, Hose (Replaces: 370448) |
|
Immediately | $ 8.58 | ||||
| 8 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 9 | WPW10730972 | Pump (complete) (Replaces: W10130913) |
|
Immediately | $ 177.38 | ||||
| 10 | W10034820 | Foot, Rubber (slider) |
|
$ 13.43 | |||||
| 11 | W10034830 | Foot, Rubber (lock) |
|
- | |||||
| 12 | 8540033 | Cap, Lock Foot |
|
$ 18.88 | |||||
| 13 | 8533964 | Screw, Ventilation |
|
$ 12.60 | |||||
| 14 | WPW10730972 | Seal, Filter Cap (Replaces: 8540025) |
|
Immediately | $ 177.38 | ||||
| 15 | WP2262071 | Tie, Cable (Replaces: 2262071) |
|
$ 9.24 | |||||
| 16 | WPW10272563 | Hose, Drain Inner (Replaces: W10272563) |
|
$ 30.71 | |||||
| 17 | 8182209 | Retainer, Drain Hose (Replaces: W10003290) |
|
$ 21.60 |
