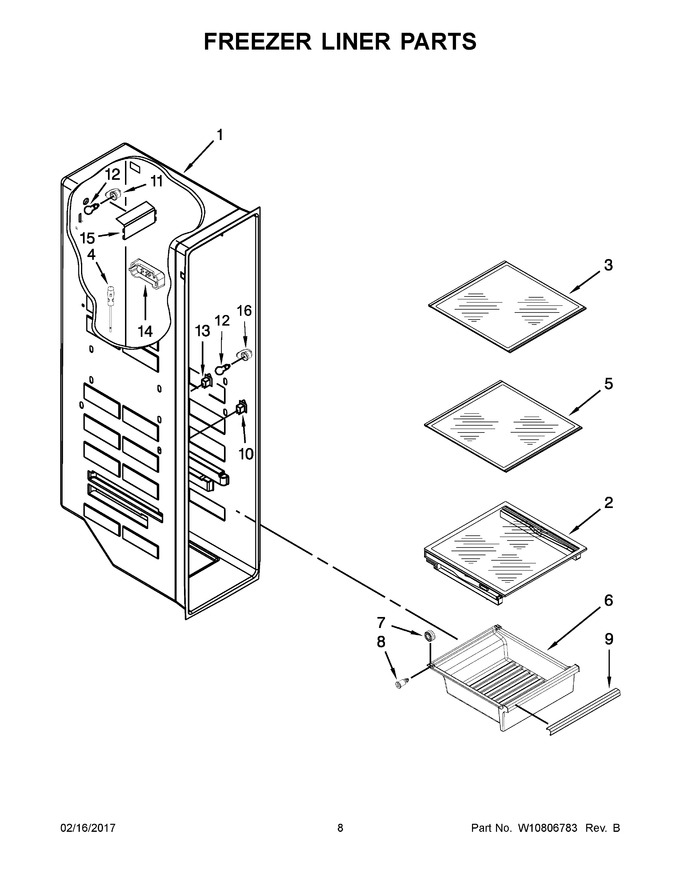

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W11193485		Assembly, Cover   (Replaces: W10463653)				$ 151.85
3	W11097339		Shelf, Glass Upper   (Replaces: W10773890)				$ 216.51
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 32.00
5	W11097340		Shelf, Glass Lower   (Replaces: W10773892)				$ 216.51
6	WPW10260985		Pan, Freezer   (Replaces: W10260985)				$ 149.42
7	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 14.99
8	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 17.05
9	W11236850		Trim, Handle   (Replaces: W10260986)		Appelez-nous	-
10	W11396033		Switch, Rocker Arm   (Replaces: W10656771)			Immediately	$ 37.30
11	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 110.16
12	W11216993		Lamp, Led   (Replaces: W10820003)			Immediately	$ 43.24
13	W11123943		Switch, Rocker Arm   (Replaces: W10656772)				$ 34.91
14	WPW10425252		Cover, Thermistor   (Replaces: W10425252)			Immediately	$ 84.17
15	WPW10269101		Lens   (Replaces: W10269101)				$ 102.33
16	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 101.10
