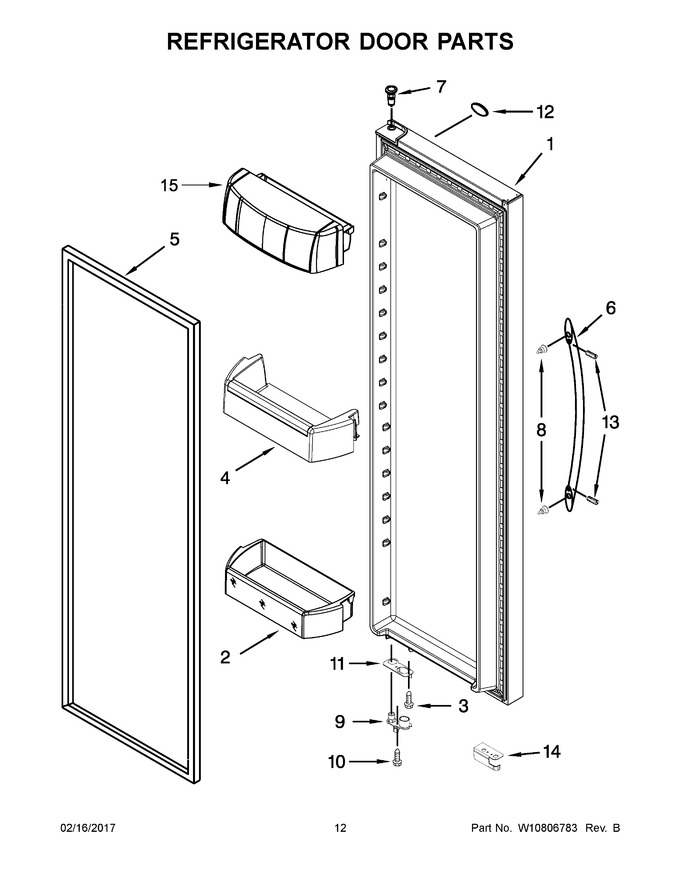

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10352226		Door, Refrigerator (includes Item 5) (white)		Appelez-nous	-
2	WPW10527271		Bin, Gallon Door   (Replaces: W10527271)			Immediately	$ 107.08
3	WPW10296816		Screw   (Replaces: W10296816)				$ 7.52
4	WPW10296855		Bin, Shallow Door   (Replaces: W10296855)				$ 75.38
5	WPW10247884		Gasket, Door (beige)   (Replaces: W10247884)				$ 307.59
6	W10899551		Handle (stainless)   (Replaces: W10678291)			Immediately	$ 179.83
7	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 7.76
8	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.85
9	WPW10248011		Closer, Upper Cam Door (white)   (Replaces: W10248011)				$ 12.31
10	WPW10296804		Screw   (Replaces: W10296804)				$ 10.85
11	W11037957		Bracket, Door Stop   (Replaces: W10888898)				$ 76.42
12	WPW10511975		Nameplate (white)   (Replaces: W10511975)				$ 76.99
13	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
14	W10789144		Cover, Door Stop (white)				$ 18.46
15	WPW10324760		Assembly, Utility Compartment   (Replaces: W10324760)				$ 81.52
12A	WPW10511972		Nameplate (grey)   (Replaces: W10511972)				$ 75.76
14A	W10789145		Cover, Door Stop (black)				$ 18.45
14B	W11661847		Cover, Door Stop (grey)   (Replaces: W10789147)			Immediately	$ 30.20
1A	W10352229		Door, Refrigerator (includes Item 5) (black)		Appelez-nous	-
1B	W10651576		Door, Refrigerator (includes Item 5) (stainless)		Appelez-nous	-
5A	WPW10249912		Gasket, Door (black)   (Replaces: W10249912)				$ 313.50
5B	W10355582		Gasket, Door (grey)   (Replaces: W10249916)				$ 325.01
9A	WPW10257201		Closer, Upper Cam Door (black)   (Replaces: W10257201)				$ 12.31
9B	WPW10257203		Closer, Upper Cam Door (grey)   (Replaces: W10257203)				$ 12.34
