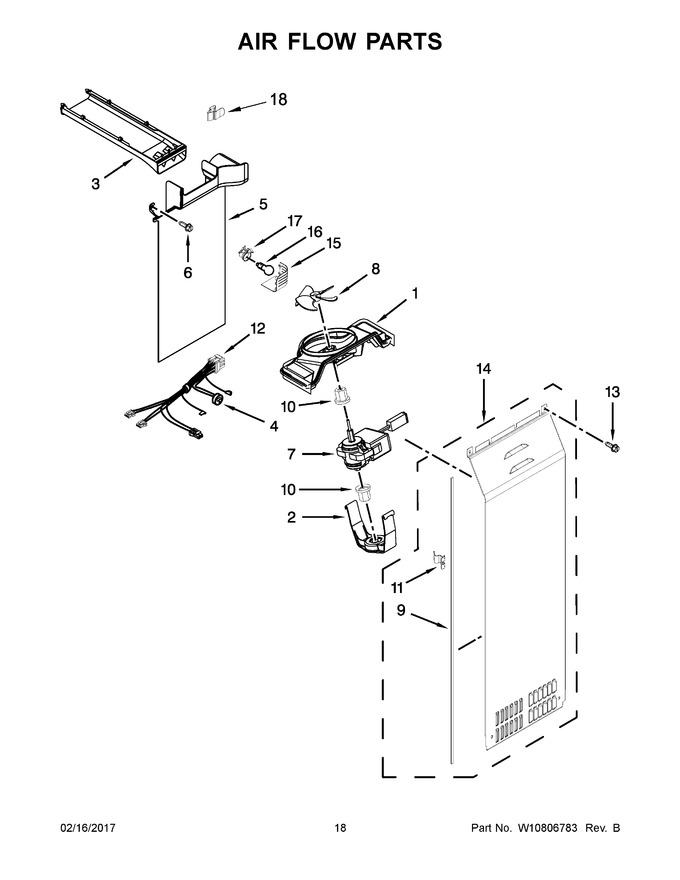

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11807265 | Scroll, Fan (Replaces: W10251462) |
|
$ 29.24 | |||||
| 2 | 8201663 | Retainer, Fan Motor (Replaces: 2223733) |
|
$ 151.69 | |||||
| 3 | W10515038 | Duct, Upper Air (Replaces: W10550199) |
|
$ 347.25 | |||||
| 4 | WPW10225581 | Bi-metal, Defrost (Replaces: W10260437) |
|
Immediately | $ 50.77 | ||||
| 5 | W10260378 | Duct, Freezer Air |
|
- | |||||
| 6 | WP489478 | Screw (Replaces: W10001260) |
|
$ 7.75 | |||||
| 7 | W11396715 | Motor, Fan (Replaces: W10556724) |
|
$ 208.52 | |||||
| 8 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 9 | W10240370 | Gasket, Evaporator Cover |
|
- | |||||
| 10 | W11669856 | Grommet, Motor (Replaces: W10449920) |
|
Immediately | $ 15.17 | ||||
| 11 | W11232019 | Clip, Evaporator Cover (Replaces: W10369602) |
|
Immediately | $ 10.85 | ||||
| 12 | W11449066 | Assembly, Evaporator Fan Wire (includes Bi-metal Defrost) (Replaces: W10679946) |
|
$ 95.53 | |||||
| 13 | WP693995 | Screw (Replaces: W10142292) |
|
Immediately | $ 7.19 | ||||
| 14 | WPW10388268 | Cover, Evaporator (Replaces: W10388268) |
|
$ 244.21 | |||||
| 15 | W10260382 | Cover, Light |
|
$ 76.74 | |||||
| 16 | W11216993 | Lamp, Led (Replaces: W10820003) |
|
Immediately | $ 43.24 | ||||
| 17 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 18 | W10331728 | Clip, Air Duct |
|
$ 77.32 |
