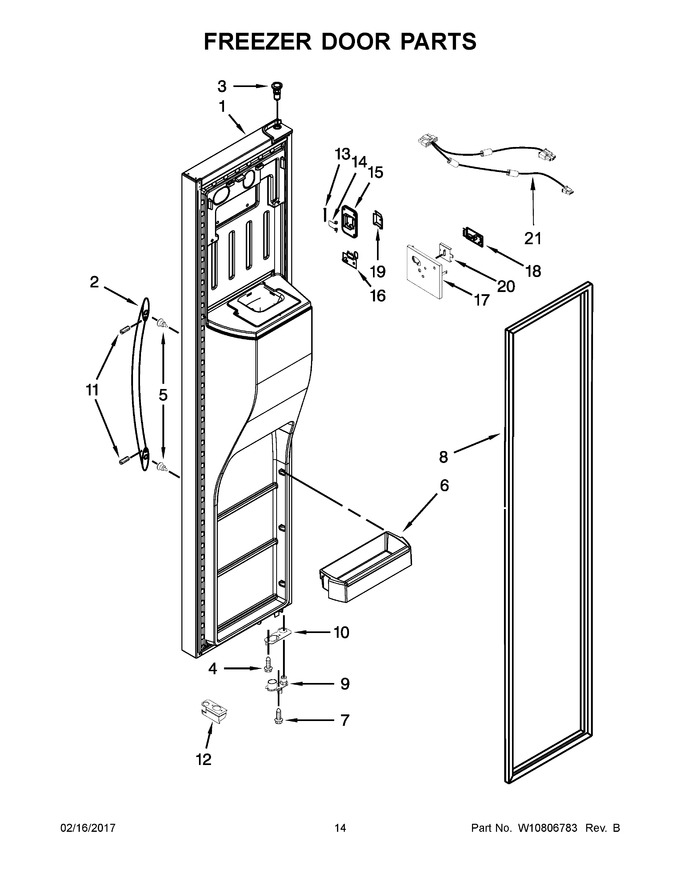

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10678618 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 2 | W10899551 | Handle (stainless) (Replaces: W10678291) |
|
Immediately | $ 179.83 | ||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 7.76 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.85 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.85 | ||||
| 6 | WPW10296857 | Bin, Door (Replaces: W10296857) |
|
$ 77.44 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.52 | |||||
| 8 | WPW10247885 | Gasket, Door (beige) (Replaces: W10247885) |
|
$ 330.54 | |||||
| 9 | WPW10248015 | Closer, Upper Cam Door (white) (Replaces: W10248015) |
|
$ 12.25 | |||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10247907) |
|
$ 65.91 | |||||
| 11 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 12 | W10632059 | Cover, Door Stop (white) |
|
$ 22.34 | |||||
| 13 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 17.76 | |||||
| 14 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 87.08 | |||||
| 15 | W10258502 | Cover, Emitter |
|
$ 85.47 | |||||
| 16 | W10870822 | Board, Emitter Circuit (Replaces: W10518659) |
|
Immediately | $ 222.54 | ||||
| 17 | W10363396 | Cover, Receiver |
|
$ 75.97 | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 313.30 | ||||
| 19 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 75.86 | |||||
| 20 | W10258540 | Slide, Icemaker Shut Off |
|
$ 10.62 | |||||
| 21 | W10411699 | Harness, Emitter And Receiver |
|
$ 145.51 | |||||
| 12A | W10632060 | Cover, Door Stop (black) |
|
$ 21.24 | |||||
| 12B | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10632062) |
|
$ 7.19 | |||||
| 1A | W10678619 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1B | W10678620 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 8A | WPW10249913 | Gasket, Door (black) (Replaces: W10249913) |
|
$ 305.76 | |||||
| 8B | WPW10355585 | Gasket, Door (grey) (Replaces: W10249917) |
|
$ 321.21 | |||||
| 9A | W11607100 | Closer, Upper Cam Door (black) (Replaces: W10257204) |
|
Immediately | $ 13.31 | ||||
| 9B | WPW10257206 | Closer, Upper Cam Door (grey) (Replaces: W10257206) |
|
Immediately | $ 12.55 |
