01 - Cover Sheet

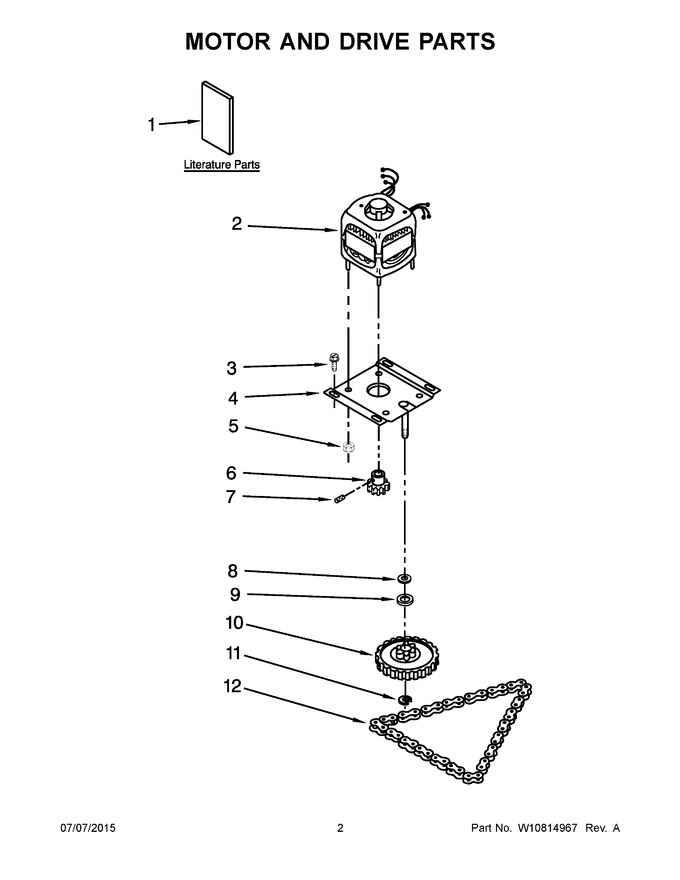

02 - Motor And Drive Parts


03 - Frame Parts


04 - Powerscrew And Ram Parts


05 - Container Parts


06 - Cabinet And Control Parts


07 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9872208		Guide, Use And Care		Appelez-nous	-
2	W10439651		Motor, Drive   (Replaces: W10318887)				$ 326.85
3	WP8204624		Screw   (Replaces: 9871067)				$ 16.65
4	776327		Plate, Drive Mount		Appelez-nous	-
5	WP776338		Locknut   (Replaces: 776338)				$ 19.35
6	882699		Gear, Drive   (Replaces: 4149667)				$ 117.67
7	WP454512		Pin, Slotted Spring   (Replaces: 454512)				$ 7.54
8	776035		Washer, Wave				$ 13.38
9	W11214485		Washer, Thrust   (Replaces: 297462)				$ 13.56
10	882699		Gear, Driven   (Replaces: 777124)				$ 117.67
11	WP776036		Clip, Ring   (Replaces: 776036)				$ 7.43
12	780477		Chain, Drive				$ 206.73
1A	W10415490		Tech Sheet		Appelez-nous	-
1B	W10318872		Instruction Sheet		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	9870118A		Undercounter Conversion Kit   (Replaces: 9870118)				$ 57.48
