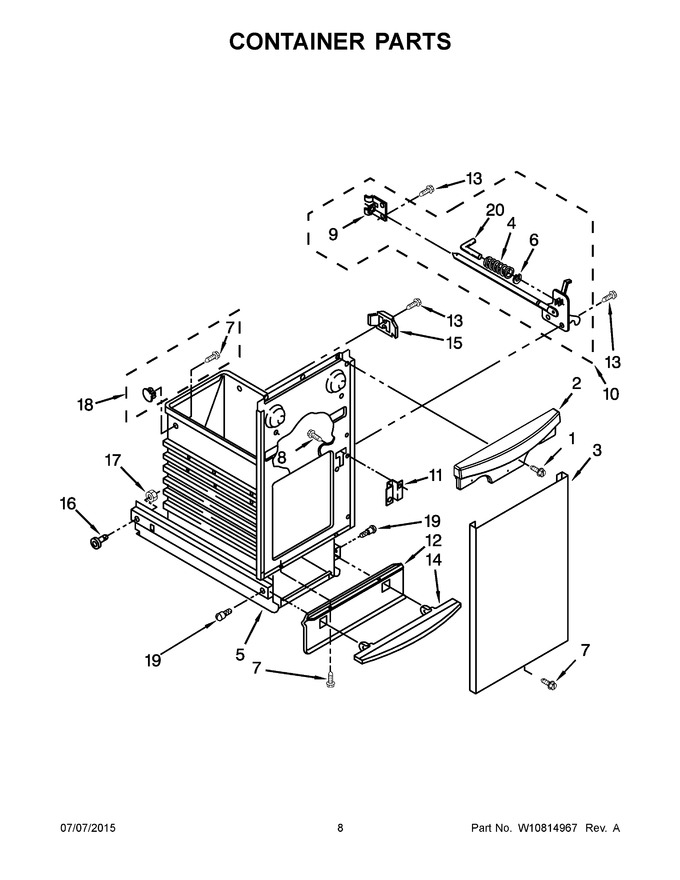

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.02
2	9872040W		Handle, Container				$ 266.34
3	W11795370		Panel, Container Front (black)   (Replaces: 9871311)				$ 345.56
4	775736		Spring, Latch				$ 89.33
5	WPW10451276		Container Assembly   (Replaces: 9870934)				$ 486.21
6	W11679168		Ring, "e   (Replaces: 775735)		Appelez-nous	-
7	WP3196175		Screw   (Replaces: 3196175)			Immediately	$ 7.19
8	WPW10139210		Screw   (Replaces: 4152204)				$ 7.50
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 93.43
10	675379		Latch Assembly   (Replaces: 9870066)				$ 173.84
11	775665		Plate, Latch				$ 59.42
12	WPW10242557		Guard, Toeplate (black)   (Replaces: 777328)				$ 135.74
13	WP489478		Screw   (Replaces: W10001260)				$ 7.75
14	W11679165		Pedal, Foot (black)   (Replaces: 4149672)				$ 59.49
15	9871125		Actuator, Safety Switch				$ 27.97
16	WP9871602		Bearing, Container Roller   (Replaces: 9871602)				$ 13.21
17	WP776356		Locknut   (Replaces: 776356)				$ 7.85
18	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
19	WP780263		Screw   (Replaces: 780263)				$ 7.85
20	W11705836		Pin, Latch   (Replaces: 776654)		Appelez-nous	-
12A	W10917704		Guard, Toeplate (white)   (Replaces: 9871030)		Appelez-nous	-
14A	WP9871031		Pedal, Foot (white)   (Replaces: 9871031)				$ 151.94
2A	WP9872040B		Handle, Container (black)   (Replaces: 9872040B)				$ 273.01
3A	9871309		Panel, Container Front (white)				$ 46.45
