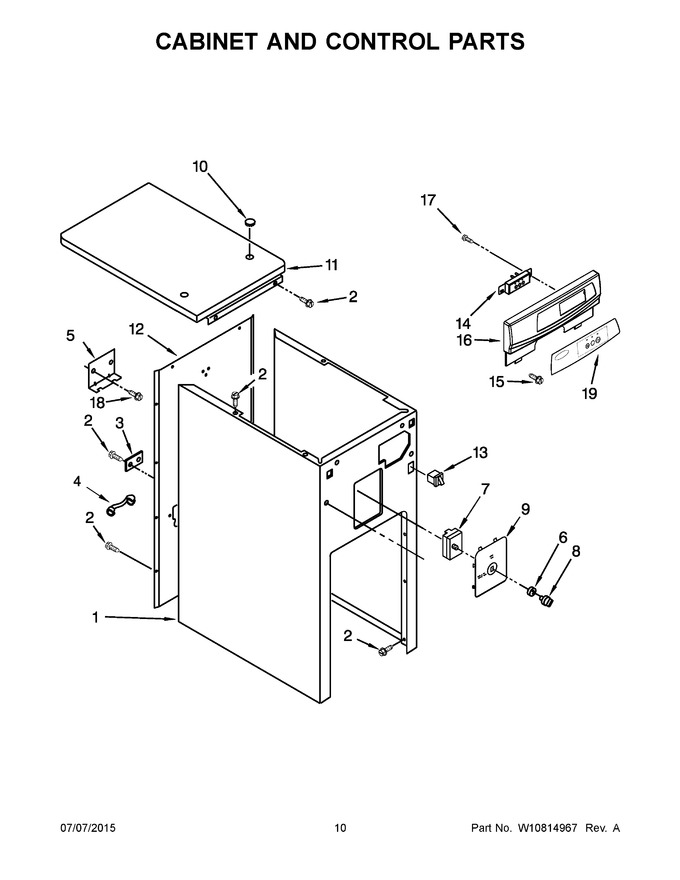

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9870921		Cabinet (black)		Appelez-nous	-
2	WP489478		Screw   (Replaces: W10001260)				$ 7.75
3	775676		Plate, Power Cord		Appelez-nous	-
4	W11820597		Bushing, Power Cord   (Replaces: 776119)		Appelez-nous	-
5	9870125		Bracket, Protector		Appelez-nous	-
6	WP777383		Nut   (Replaces: 777383)				$ 11.60
7	777380		Switch, Rotary				$ 154.58
8	WP4155141		Knob, Switch   (Replaces: 4155141)				$ 56.84
9	9871161		Plate, Switch (black)				$ 90.67
10	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.02
11	9871008		Top, Cabinet (black)		Appelez-nous	-
12	9870863		Panel, Back		Appelez-nous	-
13	9871829		Switch, Drawer Tilt (black)				$ 89.48
14	W10813586		Assembly, Switch   (Replaces: W10723644)				$ 239.18
15	246131		Screw		Appelez-nous	-
16	W11736462		Escutcheon, Control (black)   (Replaces: 9872039B)		Appelez-nous	-
17	W11705838		Plug, Hole (black)   (Replaces: 9870905)		Appelez-nous	-
18	WPW10139210		Screw   (Replaces: 4152204)				$ 7.50
19	W11050447		Insert, Decorative (black)   (Replaces: 9872017B)		Appelez-nous	-
11A	WP9870865		Top, Cabinet (white)   (Replaces: 9870865)				$ 318.69
13A	WP4387911		Switch, Drawer Tilt (white)   (Replaces: 4152058)			Immediately	$ 39.66
16A	9872039W		Escutcheon, Control (white)		Appelez-nous	-
17A	4151479		Plug, Hole (white)		Appelez-nous	-
19A	W11690155		Insert, Decorative (white)   (Replaces: 9872017W)				$ 70.74
1A	WP9870913		Cabinet (white)   (Replaces: 9870913)				$ 284.13
9A	9870356		Plate, Switch (white)		Appelez-nous	-
