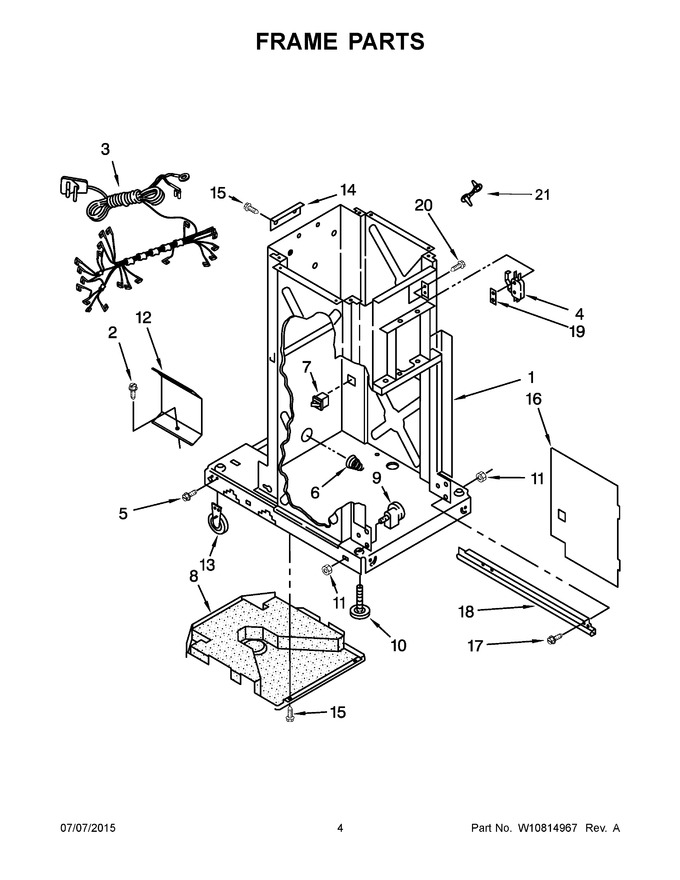

01 - Cover Sheet
02 - Motor And Drive Parts
03 - Frame Parts
04 - Powerscrew And Ram Parts
05 - Container Parts
06 - Cabinet And Control Parts
07 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Frame (not A Serviceable Part) |
|
- | |||||
| 2 | WPW10139210 | Screw (Replaces: 4152204) |
|
$ 7.50 | |||||
| 3 | W10830512 | Wiring Harness & Power Cord (Replaces: W10279442) |
|
- | |||||
| 4 | WP777811 | Switch, Top Limit & Directional (Replaces: 777811) |
|
Immediately | $ 111.07 | ||||
| 5 | WP3351614 | Screw (Replaces: 780034) |
|
Immediately | $ 6.95 | ||||
| 6 | WP777180 | Spring, Container (Replaces: 777180) |
|
$ 93.27 | |||||
| 7 | W11243179 | Switch, Drawer Safety (Replaces: 4149377) |
|
$ 71.18 | |||||
| 8 | WP780437 | Pan, Bottom (Replaces: 9870167) |
|
$ 301.53 | |||||
| 9 | 882688 | Bearing, Roller (Replaces: 4153788) |
|
$ 20.18 | |||||
| 10 | WPW10001130 | Foot (Replaces: 775526) |
|
Immediately | $ 7.80 | ||||
| 11 | WP776356 | Locknut (Replaces: 776356) |
|
$ 7.85 | |||||
| 12 | 9870867 | Shield, Slide Track |
|
- | |||||
| 13 | W11023674 | Wheel, Leveler (Replaces: 9870585) |
|
$ 51.48 | |||||
| 14 | 775668 | Angle, Frame Plate |
|
- | |||||
| 15 | WP489478 | Screw (Replaces: W10001260) |
|
$ 7.75 | |||||
| 16 | WP9870444 | Panel, Inner (Replaces: 9870444) |
|
$ 97.07 | |||||
| 17 | WP486754 | Screw (Replaces: 777458) |
|
$ 7.50 | |||||
| 18 | W11722978 | Frame, Slide (right Hand) (Replaces: 9870976) |
|
$ 134.60 | |||||
| 19 | 777850 | Plate, Nut |
|
$ 73.46 | |||||
| 20 | 777849 | Screw |
|
$ 7.01 | |||||
| 21 | W11705832 | Clamp, Wire (Replaces: 777035) |
|
- | |||||
| 18A | WP9870975 | Frame, Slide (left Hand) (Replaces: 9870975) |
|
$ 107.33 |
