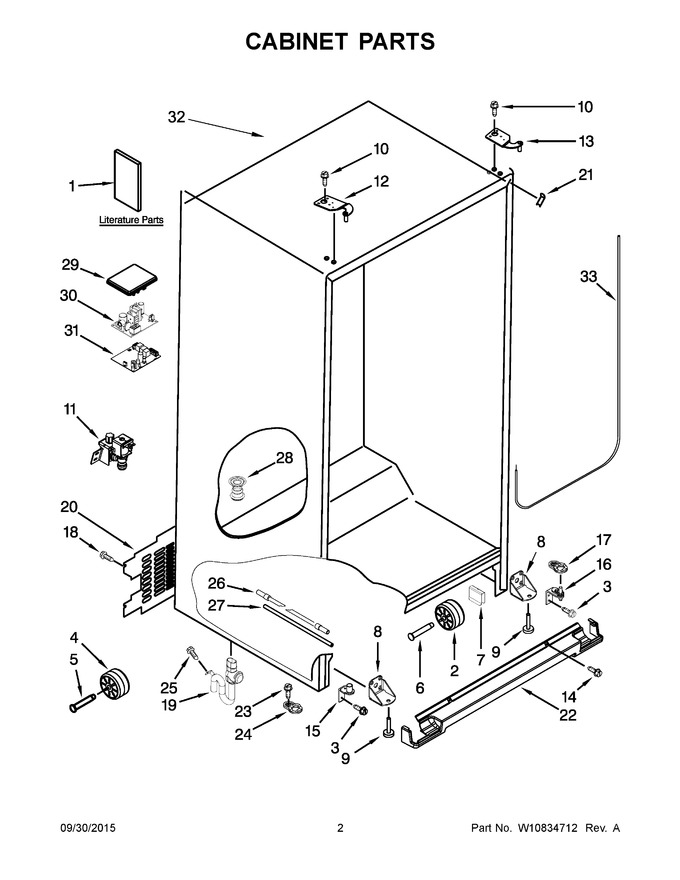

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10779443 | Use And Care Guide |
|
- | |||||
| 2 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 3 | WPW10297485 | Screw (Replaces: W10297485) |
|
$ 7.62 | |||||
| 4 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 5 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.52 | ||||
| 6 | W11208384 | Rivet, Roller (Replaces: 981125) |
|
$ 17.84 | |||||
| 7 | W11545866 | Clip, Axle Retainer (Replaces: 2223388) |
|
$ 11.31 | |||||
| 8 | W11266052 | Bracket, Foot (Replaces: W10257186) |
|
$ 63.15 | |||||
| 9 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 10 | WPW10308751 | Screw (black) (Replaces: W10308751) |
|
$ 8.41 | |||||
| 11 | WPW10279876 | Valve, Inlet (Replaces: W10498994) |
|
$ 142.08 | |||||
| 12 | W11590581 | Hinge Top (freeer) (grey) (Replaces: W10673327) |
|
$ 23.06 | |||||
| 13 | W11409290 | Hinge, Top (rc) (grey) (Replaces: W10611065) |
|
$ 67.12 | |||||
| 14 | WPW10308489 | Screw (grey) (Replaces: W10308489) |
|
Immediately | $ 7.79 | ||||
| 15 | W11293374 | Bottom Hinge (fc) (grey) (Replaces: W10249943) |
|
$ 69.83 | |||||
| 16 | W11292872 | Bottom Hinge (rc) (grey) (Replaces: W10666895) |
|
$ 68.66 | |||||
| 17 | W11311687 | Door Closer (rc) (grey) (Replaces: W10738911) |
|
$ 13.40 | |||||
| 18 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.67 | |||||
| 19 | W11519143 | Tube, Drain (Replaces: W10369091) |
|
$ 36.52 | |||||
| 20 | W10257325 | Cover, Unit |
|
- | |||||
| 21 | WP12587703AP | Filler, Wrapper (grey) (Replaces: 12587703AP) |
|
$ 7.69 | |||||
| 22 | WPW10713153 | Grille (grey) (Replaces: W10713153) |
|
Immediately | $ 129.07 | ||||
| 23 | WP489483 | Screw (Replaces: W10142234) |
|
$ 10.87 | |||||
| 24 | W10876191 | Door Closer (fc) (grey) (Replaces: W10257200) |
|
$ 17.12 | |||||
| 25 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.83 | ||||
| 26 | WPW10279882 | Tube, Filter Inlet (Replaces: W10279882) |
|
$ 108.79 | |||||
| 27 | WPW10279885 | Tube, Filter Outlet (Replaces: W10279885) |
|
$ 122.61 | |||||
| 28 | W10247979 | Fitting, Drain |
|
$ 64.59 | |||||
| 29 | W11226688 | Lid, Hv Box (Replaces: 12957702) |
|
$ 81.10 | |||||
| 30 | WPW10226427 | Control, Electronic (power Supply) (Replaces: W10226427) |
|
Immediately | $ 335.17 | ||||
| 31 | WPW10419172 | Control, Electronic (Replaces: W10419172) |
|
$ 234.68 | |||||
| 32 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 33 | W10129974 | Fill Tube |
|
- | |||||
| 1A | W10386938 | Service & Wiring Sheet |
|
- | |||||
| 1B | W10827023 | Energy Label |
|
- |
