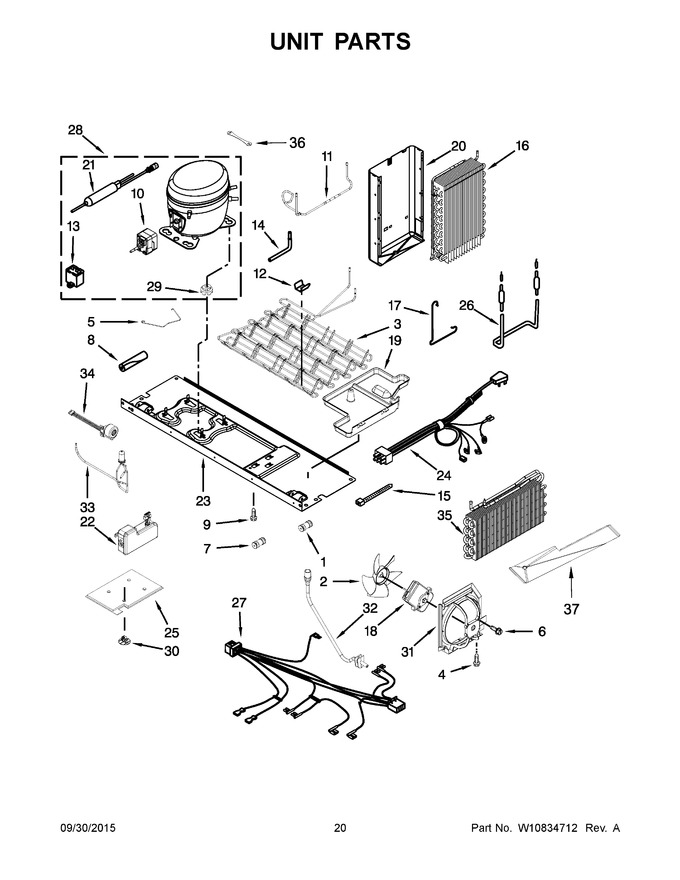

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 69.57 | ||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11708426 | Assembly, Condenser (Replaces: W10240365) |
|
$ 271.19 | |||||
| 4 | WP489399 | Screw (Replaces: W10142231) |
|
$ 7.30 | |||||
| 5 | 2223314 | Bale Strap |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.61 | ||||
| 7 | WPW10271543 | Connector, Water Tube (Replaces: W10271543) |
|
Immediately | $ 35.43 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 9 | W10142255 | Screw |
|
- | |||||
| 10 | WP2304885 | Device, Start (Replaces: 2304885) |
|
$ 188.44 | |||||
| 11 | WPW10223328 | Tube, Suction (Replaces: W10223328) |
|
$ 92.85 | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | W10545372 | Capacitor |
|
- | |||||
| 14 | 2325479 | Tube, Process |
|
- | |||||
| 15 | W10204187 | Strap, Bale |
|
- | |||||
| 16 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 356.84 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | WP2188874 | Motor, Condenser (Replaces: W10508362) |
|
Immediately | $ 113.96 | ||||
| 19 | W10696182 | Tray, Evaporator |
|
- | |||||
| 20 | W10348669 | Heat Shield |
|
- | |||||
| 21 | WPW10143759 | Drier (Replaces: W10286069) |
|
Immediately | $ 30.78 | ||||
| 22 | W11038857 | Led Power Supply (Replaces: W10292715) |
|
$ 363.91 | |||||
| 23 | W10277704 | Basepan |
|
$ 169.00 | |||||
| 24 | W10421067 | Power Cord |
|
- | |||||
| 25 | W10366750 | Unit Cover, Bottom |
|
- | |||||
| 26 | WPW10338944 | Heater, Defrost (Replaces: W10338944) |
|
$ 145.17 | |||||
| 27 | W10670175 | Harness, Wiring Water Valve |
|
- | |||||
| 28 | W10139460 | Compressor (also Order 876765 Tube Kit) (Replaces: W10120460) |
|
$ 515.84 | |||||
| 29 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 7.55 | |||||
| 30 | W10296661 | Clip, Bottom Cover |
|
$ 17.78 | |||||
| 31 | WPW10251467 | Baffle, Air (Replaces: W10251467) |
|
$ 84.80 | |||||
| 32 | W11409190 | Tube, Drain (Replaces: W10223368) |
|
Immediately | $ 65.34 | ||||
| 33 | W11590197 | Assembly, Valve Body (Replaces: W10331270) |
|
Immediately | $ 114.11 | ||||
| 34 | WPW10364560 | Coil, 3 Way Valve (Replaces: W10364560) |
|
$ 225.88 | |||||
| 35 | WPW10643261 | Evaporator, Dual-rc (Replaces: W10643261) |
|
Immediately | $ 343.44 | ||||
| 36 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 37 | W11720794 | Pan, Drip (Replaces: W10317862) |
|
$ 147.99 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 5.3 Oz (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 |
