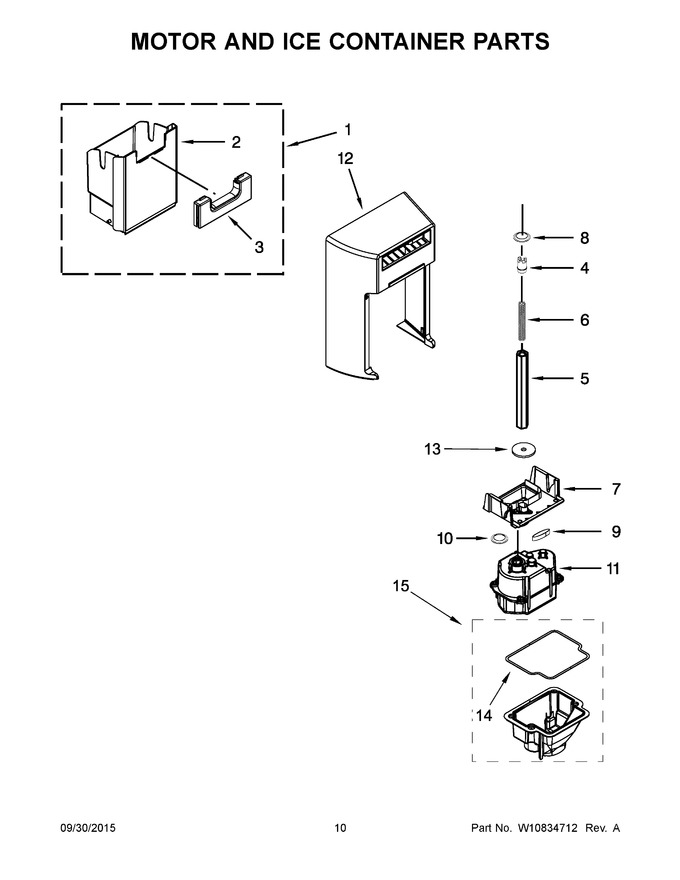

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10821671 | Ice Container Assembly |
|
- | |||||
| 2 | W10315100 | Ice Bin |
|
- | |||||
| 3 | W11652042 | Assembly, Latch (Replaces: W10258552) |
|
Immediately | $ 24.98 | ||||
| 4 | WP2220458 | Coupling, Bottom (Replaces: 2220458) |
|
Immediately | $ 41.04 | ||||
| 5 | WPW10258544 | Shaft, Drive (Replaces: W10258544) |
|
Immediately | $ 26.52 | ||||
| 6 | W10852956 | Spring, Coupling (Replaces: W10754509) |
|
Immediately | $ 21.40 | ||||
| 7 | W11573761 | Assembly, Mounting Plate (Replaces: W10293211) |
|
Immediately | $ 62.92 | ||||
| 8 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 12.57 | ||||
| 9 | WPW10291905 | Gasket (Replaces: W10291905) |
|
$ 27.68 | |||||
| 10 | WP2212370 | Washer (Replaces: 2212370) |
|
$ 25.35 | |||||
| 11 | W10837042 | Dispenser, Motor (Replaces: W10337064) |
|
- | |||||
| 12 | WPW10287594 | Cover, Container (Replaces: W10287594) |
|
$ 229.19 | |||||
| 13 | WP2305382 | Boot, Rubber (Replaces: 2305382) |
|
$ 10.71 | |||||
| 14 | W10166854 | Gasket |
|
$ 26.69 | |||||
| 15 | W11678273 | Assembly, Motor Box (Replaces: W10765378) |
|
Immediately | $ 77.02 |
