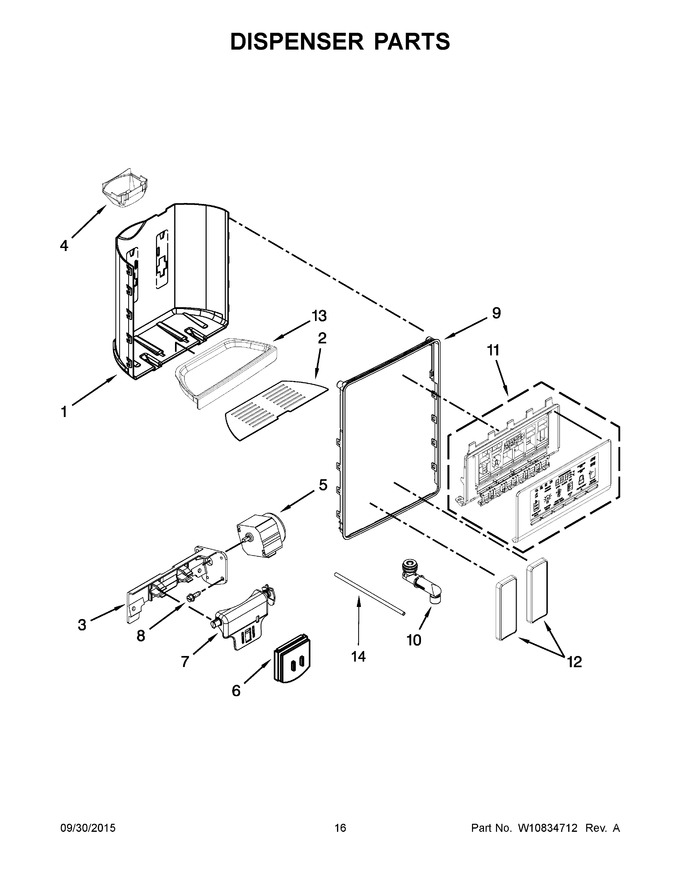

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10276197 | Grate, Drip Tray (Replaces: W10276197) |
|
$ 75.21 | |||||
| 3 | W10174827 | Bracket, Ice Door |
|
$ 76.42 | |||||
| 4 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
$ 23.94 | |||||
| 5 | WPW10205978 | Motor, Dispenser (Replaces: W10205978) |
|
$ 104.12 | |||||
| 6 | WPW10493172 | Assembly, Separator (Replaces: W10493172) |
|
$ 239.86 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | W10448934 | Trim Ring (chromium Frost) |
|
$ 45.13 | |||||
| 10 | WPW10386778 | Assembly, Water Fitting (Replaces: W10386778) |
|
Immediately | $ 132.74 | ||||
| 11 | W10830370 | Electronic Control Assembly (Replaces: W10804751) |
|
- | |||||
| 12 | WPW10370594 | Pad Assembly (grey) (Replaces: W10370594) |
|
$ 310.61 | |||||
| 13 | WPW10276196 | Drip Tray (tray, Housing) (Replaces: W10276196) |
|
$ 69.32 | |||||
| 14 | W11620106 | Tube, Water (Replaces: W10691730) |
|
$ 117.84 |
