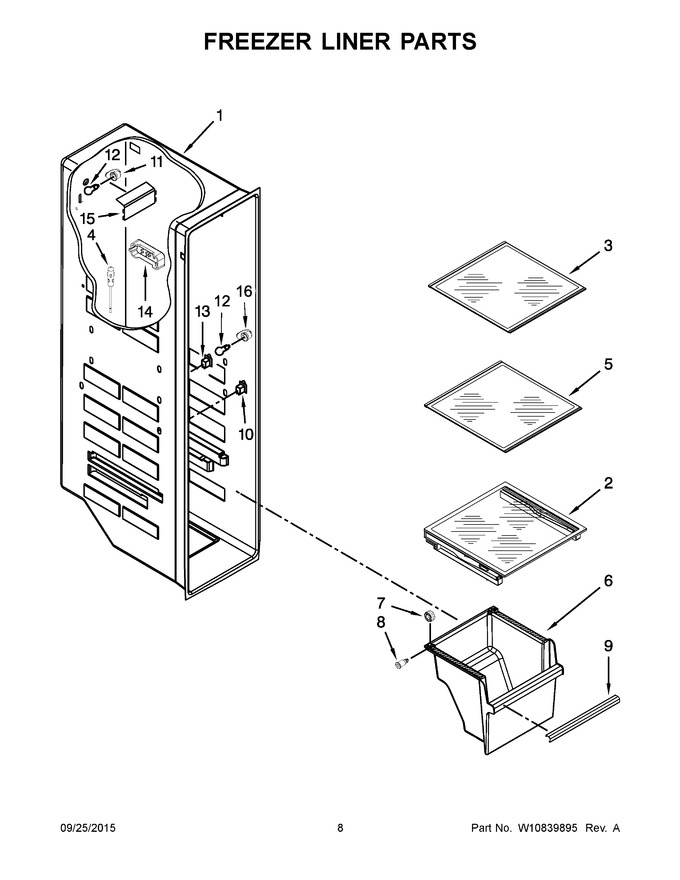

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10836801 | Assembly, Cover (Replaces: W10527863) |
|
$ 192.37 | |||||
| 3 | W11130202 | Shelf, Glass Upper (Replaces: W10527848) |
|
$ 235.29 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 33.60 | ||||
| 5 | W11130203 | Shelf, Glass Lower (Replaces: W10527849) |
|
$ 235.29 | |||||
| 6 | W11106313 | Pan, Freezer (also Order Item 7) (Replaces: W10260983) |
|
$ 123.17 | |||||
| 7 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 15.74 | ||||
| 8 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 36.54 | |||||
| 9 | W11236850 | Trim, Handle (Replaces: W10260986) |
|
- | |||||
| 10 | W11396033 | Switch, Rocker Arm (Replaces: W10656771) |
|
Immediately | $ 37.30 | ||||
| 11 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 12 | W11338583 | Lamp, Led (Replaces: W10745744) |
|
Immediately | $ 107.21 | ||||
| 13 | W11123943 | Switch, Rocker Arm (Replaces: W10656772) |
|
$ 36.66 | |||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 15 | WPW10269101 | Lens (Replaces: W10269101) |
|
$ 107.45 | |||||
| 16 | WPW10119935 | Socket, Light (Replaces: 2155597) |
|
$ 106.16 |
