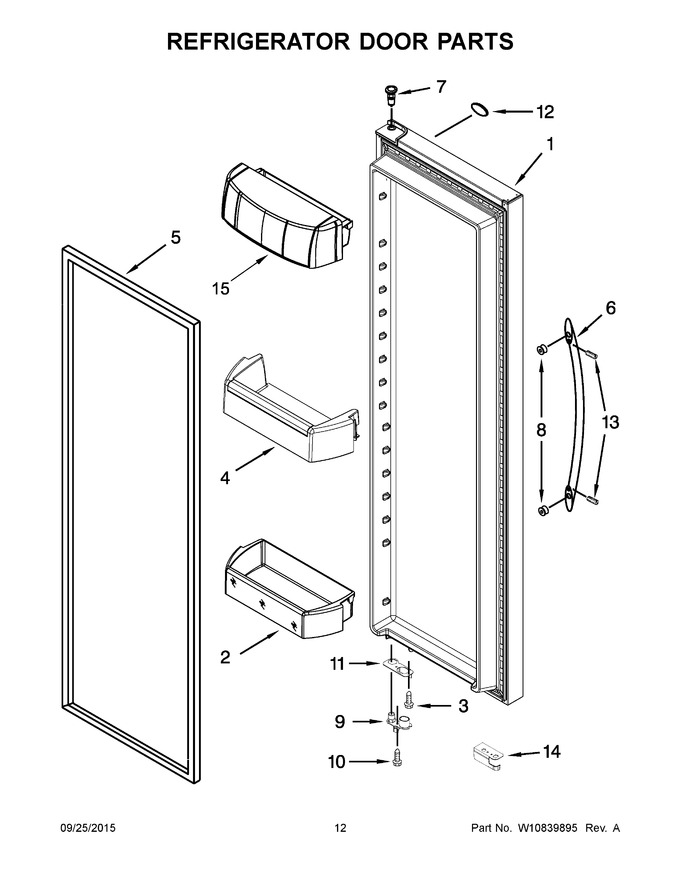

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10352229 | Door, Refrigerator (includes Item 5) (black) |
|
- | |||||
| 2 | WPW10527271 | Bin, Gallon Door (Replaces: W10527271) |
|
Immediately | $ 112.43 | ||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 4 | WPW10296855 | Bin, Shallow Door (Replaces: W10296855) |
|
$ 79.15 | |||||
| 5 | WPW10249912 | Gasket, Door (black) (Replaces: W10249912) |
|
$ 329.18 | |||||
| 6 | W10805245 | Handle (black) (Replaces: W10713678) |
|
$ 227.50 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 9 | WPW10257201 | Closer, Upper Cam Door (black) (Replaces: W10257201) |
|
$ 12.93 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10367462) |
|
$ 80.24 | |||||
| 12 | WPW10511972 | Nameplate (grey) (Replaces: W10511972) |
|
$ 79.55 | |||||
| 13 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 14 | W10257216 | Cover, Door Stop (black) |
|
- | |||||
| 15 | WPW10324760 | Assembly, Utility Compartment (Replaces: W10324760) |
|
$ 85.60 |
