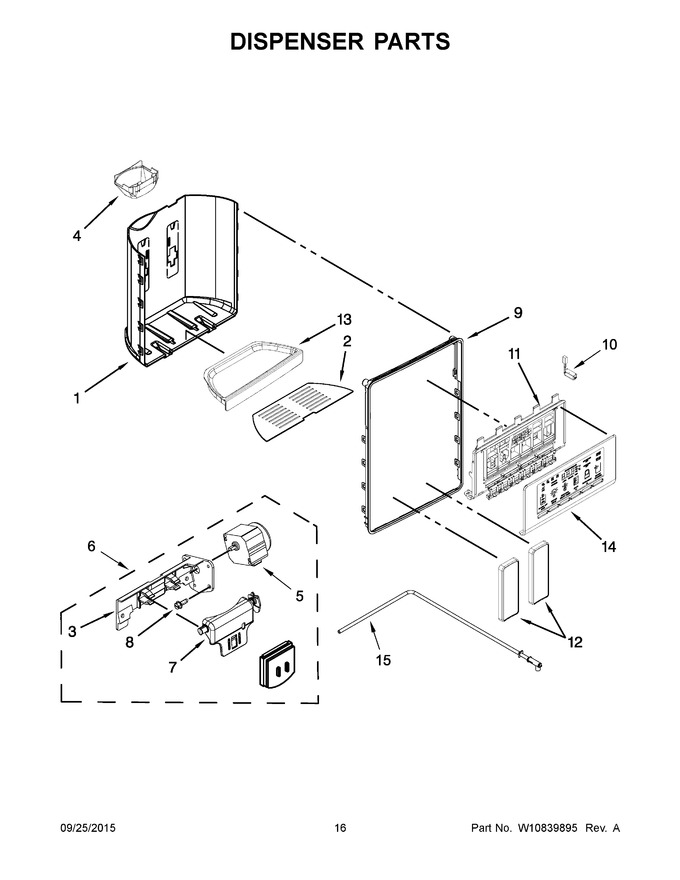

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10276223		Grate, Drip Tray (black)   (Replaces: W10276221)				$ 57.37
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
5	WPW10205978		Motor, Dispenser   (Replaces: W10205978)				$ 104.12
6	WPW10493172		Assembly, Separator   (Replaces: W10493172)				$ 239.86
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10276187		Ring, Trim (black)				$ 26.45
10	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
11	WPW10758681		User Interface Assembly   (Replaces: W10758681)				$ 448.80
12	WPW10370592		Pad, Ice And Water (black)   (Replaces: W10370592)				$ 322.90
13	W10276194		Tray, Drip (black)				$ 69.36
14	W10276229		Cover, Front (black)				$ 273.65
15	WPW10386778		Assembly, Water Fitting   (Replaces: W10386778)			Immediately	$ 132.74

    View Diagram in Separate Window       Print Part List
