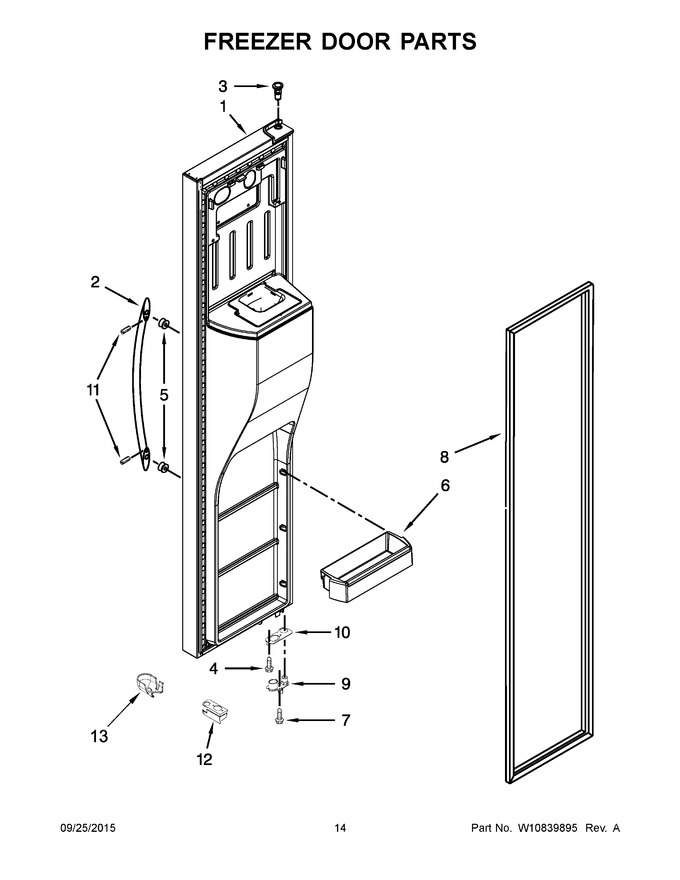

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10802777 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 2 | W10805245 | Handle (black) (Replaces: W10713678) |
|
$ 227.50 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 6 | WPW10296857 | Bin, Door (Replaces: W10296857) |
|
$ 81.31 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 8 | WPW10249913 | Gasket, Door (black) (Replaces: W10249913) |
|
$ 321.05 | |||||
| 9 | W11607100 | Closer, Upper Cam Door (black) (Replaces: W10257204) |
|
Immediately | $ 13.98 | ||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10247907) |
|
$ 69.21 | |||||
| 11 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 12 | W10632060 | Cover, Door Stop (black) |
|
$ 22.30 | |||||
| 13 | W10323148 | Cover, Wire |
|
$ 42.25 |
