SELECT A DIAGRAM

01 - Burner Box


02 - Control Panel


03 - Gas Supply


04 - Vent Sytstem

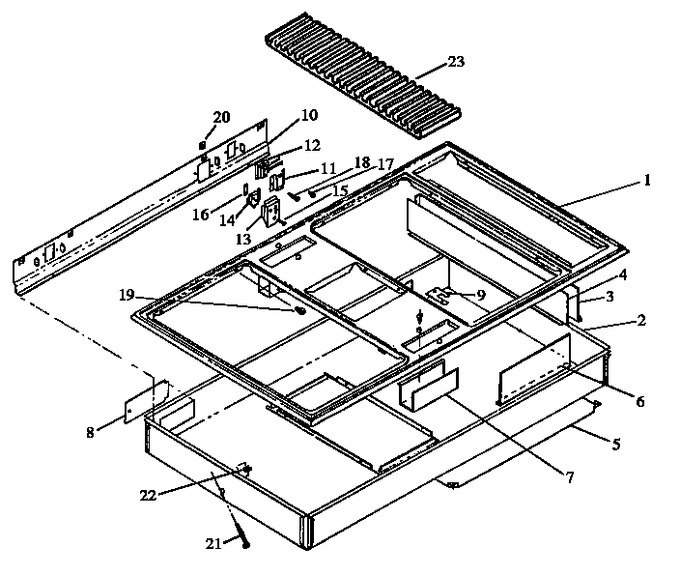

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300184K		Main Top, Chrome		Appelez-nous	-
2	Y0040485		Burner Box Wa Gt593		Appelez-nous	-
3	Y0040821		Switch Shield Et-590 595		Appelez-nous	-
4	0040837		Heat Shield Kgt591		Appelez-nous	-
5	Y0040836		Bottom Baffle Kgt591		Appelez-nous	-
6	Y0040846		Heat Shield Front Gt593		Appelez-nous	-
7	Y040838CG		Sight Shield		Appelez-nous	-
8	Y0040839		Access Cover Kgt591		Appelez-nous	-
9	Y0040996		Manifold Support Brkt. 591 593		Appelez-nous	-
10	Y0040982		Orifice Mtg. Brkt. Kgt591		Appelez-nous	-
11	Y0040983		Brkt, Plug Block Mtg		Appelez-nous	-
12	Y0052675		Plug Block Assy, Rt.		Appelez-nous	-
12	Y0052674		Plug Block Assy, Lt.		Appelez-nous	-
13	0040989		Plate, Switch Mtg		Appelez-nous	-
14	Y0308372		Switch, Module		Appelez-nous	-
15	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
16	0041902		Speed Nut (twin Type)		Appelez-nous	-
17	Y0041799		Screw, No. 8a X 1/4		Appelez-nous	-
18	Y0041825		Screw, No.8-32 X 3/8 Hex Wsh Hd		Appelez-nous	-
19	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
20	0041896		Tinnerman Clip Pyro Th		Appelez-nous	-
21	Y0041836		Screw 1/4-20-4`` 590 595		Appelez-nous	-
22	0041861		Nut 1/4-20 Sq. Et590 595		Appelez-nous	-
23	Y0058942		Vent Cover		Appelez-nous	-
NI	Y0091523		Insulation, Esm		Appelez-nous	-
NI	Y0042109		Strain Relief		Appelez-nous	-
NI	Y0042030		Supply Cord Kgt591-593		Appelez-nous	-
NI	Y0041998		Terminal, Insulator		Appelez-nous	-
NI	Y0041841		Screw Nylon 8-32x.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
