01 - Burner Box
02 - Control Panel
03 - Gas Supply
04 - Vent Sytstem
New Model Search:

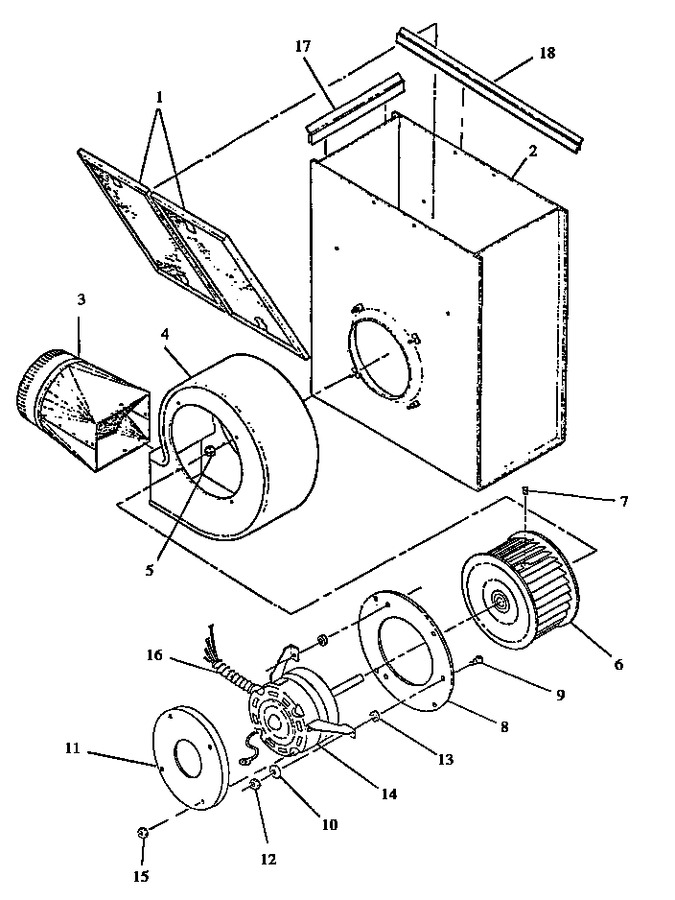

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RHF0518 | Filter Exhaust Ket595 (Replaces: Y0042024) |
|
$ 17.21 | |||||
| 2 | Y059560CG | Ass`y, Top Plenum |
|
- | |||||
| 3 | Y0059493 | Transition |
|
- | |||||
| 4 | 302681G | Blower Housing, Flat Black |
|
- | |||||
| 5 | 0041862 | Lock-nut Nylon Ket595 |
|
- | |||||
| 6 | Y0042752 | Fan Wheel Ket595 |
|
- | |||||
| 7 | Y00000000 | See Note Screw, Included With Fan Wheel |
|
- | |||||
| 8 | 0059470 | Plate, Motor Mtg |
|
- | |||||
| 9 | 0303176 | Bolt, Shoulder |
|
- | |||||
| 10 | 0041933 | Washer K |
|
- | |||||
| 11 | 0059471 | Motor Cover |
|
- | |||||
| 12 | M0282009 | Nut |
|
$ 14.07 | |||||
| 13 | 0041981 | Rubber Grommet |
|
- | |||||
| 14 | Y0314126 | Motor, Fan 115v 60hz |
|
- | |||||
| 15 | WP3400029 | Nut (Replaces: Y0041857) |
|
Immediately | $ 8.19 | ||||
| 16 | 0042115 | Conduit (3/8 X 18) |
|
- | |||||
| 17 | Y0301012 | Seal |
|
- | |||||
| 18 | 0041121 | Seal, End |
|
- | |||||
| NI | 059562G | Orifice |
|
- | |||||
| NI | Y0058971 | Connector, 3/8`` |
|
- | |||||
| NI | Y0057496 | Motor, Fan 115v 60hz |
|
- | |||||
| NI | 0059120 | Spacer, Motor Cover |
|
- | |||||
| NI | 0059569 | Gasket, Motor Mtg |
|
- |
