01 - Burner Box

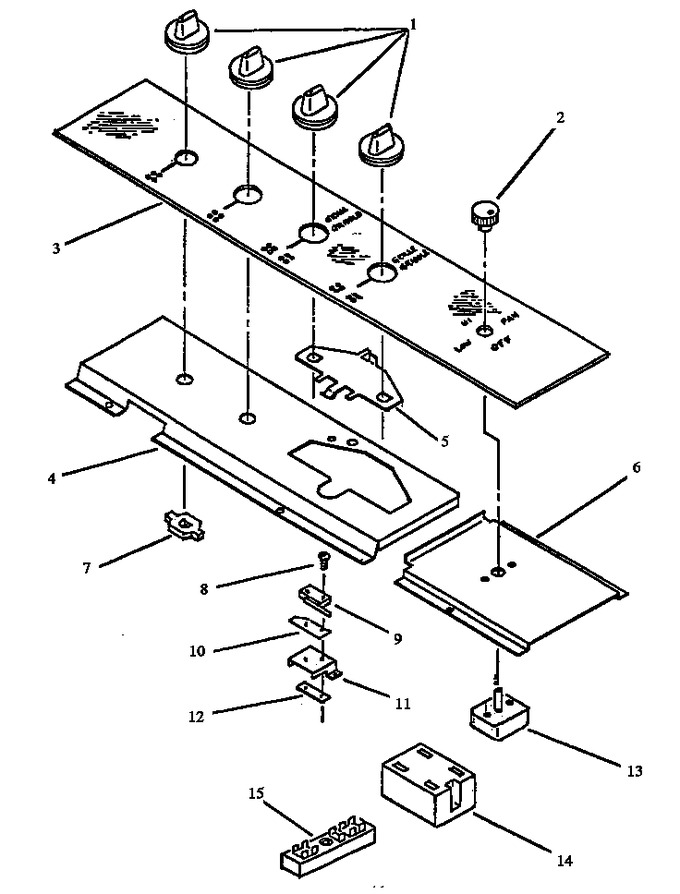

02 - Control Panel
03 - Gas Supply
04 - Vent Sytstem
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 314217B | Knob, Gas Valve (black) |
|
- | |||||
| 2 | 314290B | Knob, Fan Switch |
|
- | |||||
| 3 | 314203B | Glass, Control (black) |
|
- | |||||
| 4 | 0059489 | Valve Shield |
|
- | |||||
| 5 | Y0041046 | Switch Actuator Gt593 |
|
- | |||||
| 6 | 0300179 | Bracket, Switch Mtg. |
|
- | |||||
| 7 | Y0301326 | Harper Spark Switch |
|
- | |||||
| 8 | Y0065664 | Screw, Tt 23 4-40 X 5/8 |
|
- | |||||
| 9 | Y0308371 | Switch, Interlock (s.p.d.t.) |
|
- | |||||
| 10 | Y0091523 | Insulation, Esm |
|
- | |||||
| 11 | Y0040988 | Brkt, Micro Switch Mtg |
|
- | |||||
| 12 | Y0052675 | Plug Block Assy, Rt. |
|
- | |||||
| 12 | 0041902 | Speed Nut (twin Type) |
|
- | |||||
| 13 | Y0063503 | Selector Switch |
|
- | |||||
| 14 | Y0306035 | Spark Module |
|
- | |||||
| 15 | Y0042215 | Plug Block |
|
- | |||||
| 15 | Y0042222 | Terminal Block |
|
- | |||||
| NI | Y0314316 | Shield, Switch |
|
- |
