SELECT A DIAGRAM
01 - Burner Box
02 - Control Panel
03 - Gas Supply
04 - Vent Sytstem
New Model Search:

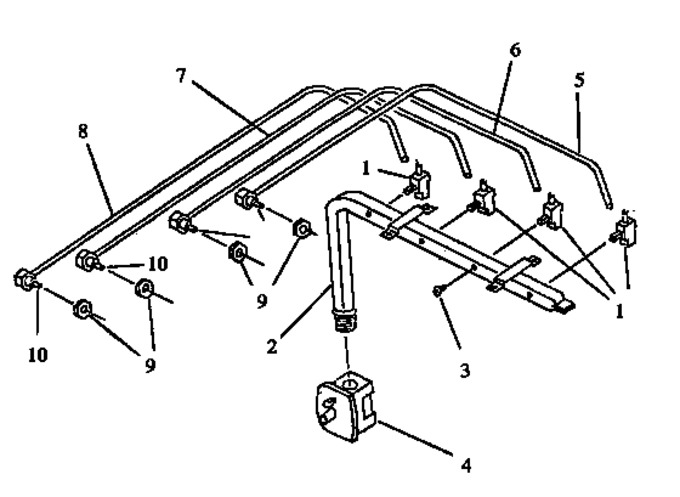

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0301425 | Valve, Surface Burner |
|
- | |||||
| 2 | 0042374 | Manifold Pipe Kgt591 |
|
- | |||||
| 3 | Y0061441 | Surface Valve Bolt& Gasket |
|
- | |||||
| 4 | 0042303 | Regulator |
|
- | |||||
| 5 | Y0042329 | Tube Orifice Assy Rf Gt591 |
|
- | |||||
| 6 | Y0042330 | Tube Orifice Assy Rr Gt591 |
|
- | |||||
| 7 | Y0052038 | Assy,tube-l.f. |
|
- | |||||
| 8 | Y0052037 | Tube Assy. L.r. |
|
- | |||||
| 9 | Y0041852 | Pal Nut Orifice Fittings |
|
- | |||||
| 10 | Y00000000 | See Note Orifice Hood Included With Tube Assy |
|
- |
