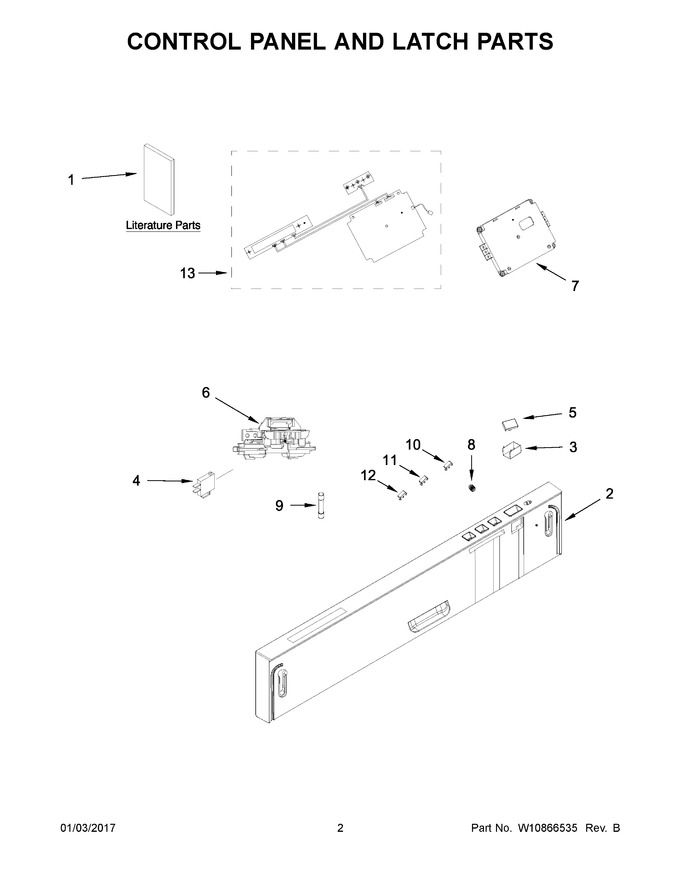

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10837341 | Use & Care Guide |
|
- | |||||
| 2 | W10717683 | Console (black) |
|
- | |||||
| 3 | W10717666 | Button, Protector |
|
- | |||||
| 4 | W10859566 | Microswitch (Replaces: W10567585) |
|
$ 29.97 | |||||
| 5 | W10868367 | Button, Start/pause |
|
- | |||||
| 6 | W10717668 | Bolt, Latch |
|
$ 68.30 | |||||
| 7 | W10567583 | Cover, Control Main |
|
- | |||||
| 8 | W10717682 | Spring, Button |
|
- | |||||
| 9 | W10487251 | Fuse |
|
$ 27.35 | |||||
| 10 | W10868366 | Button, Cycle |
|
- | |||||
| 11 | W10868364 | Button, Delay Start |
|
- | |||||
| 12 | W10868365 | Button, Heated Dry |
|
- | |||||
| 13 | W10875010 | Pcb Display Board (Replaces: W10868362) |
|
$ 283.45 |
