Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10717691 Frame, Uprights (left Hand) Appelez-nous -
2 W10567500 Block (black) Appelez-nous -
3 W10567501 Latch Special Order $ 28.24

4 W10567701 Brace, Upper (black) Appelez-nous -
5 W10567502 Block, Coupling Special Order $ 15.93

6 W10567574 Nut, Leveling Leg Special Order $ 12.22

7 W10567573 Leg, Leveling Special Order $ 13.50

8 W10875007 Water Valve   (Replaces: W10868360) Special Order $ 154.94

9 W10567670 Clamp Appelez-nous -
10 W10567716 Brace, Lower Appelez-nous -
11 W10567717 Brace, Lower Rear Appelez-nous -
12 W10567566 Cover, Terminal Box Appelez-nous -
13 WPW10567567 Box, Terminal   (Replaces: W10567567) Special Order $ 22.82

14 W10567718 Support, Tub Appelez-nous -
15 W10852388 Screw Special Order $ 12.83

16 W10852389 Nut Special Order $ 21.97

1A WPW10567702 Frame, Uprights (right Hand)   (Replaces: W10567702) Special Order $ 138.08


    View Diagram in Separate Window     Print Icon   Print Part List

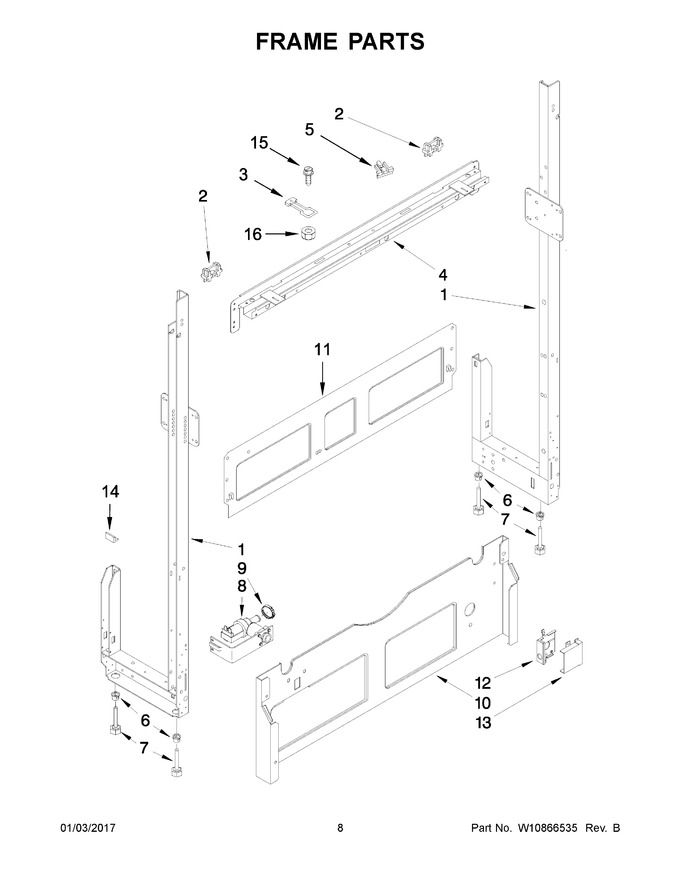

Diagram for UDT518SAFP0
