Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10717675 Tube, Feed Special Order $ 120.50

2 W10567637 Gasket Special Order $ 34.18

3 WPW10567698 Shield, Sound   (Replaces: W10567698) Special Order $ 30.58

4 W10567720 Tub Special Order $ 286.50

5 W10567636 Guide Special Order $ 21.98

6 W10567635 Nut, Feed Tube Special Order $ 16.61

7 W11685772 Wheel, Tub   (Replaces: W10567558) Appelez-nous -
8 W10567559 Track Special Order $ 68.98

9 W11165171 Stop, Track   (Replaces: W10567560) Special Order $ 16.68

10 W10567624 Inlet, Water Appelez-nous -
11 W10717680 Hose, Inlet Appelez-nous -
12 W10567668 Hose, Pressure Switch Appelez-nous -
13 W10567650 Switch, Pressure Special Order $ 96.31

14 W10567621 Clamp Special Order $ 37.69

15 W10567622 Cover, Inlet Appelez-nous -
16 W10567660 Bezel, Inlet Appelez-nous -
17 W10567669 Support, Pressure Switch Special Order $ 15.27

18 W10717690 Gasket, Tub Appelez-nous -

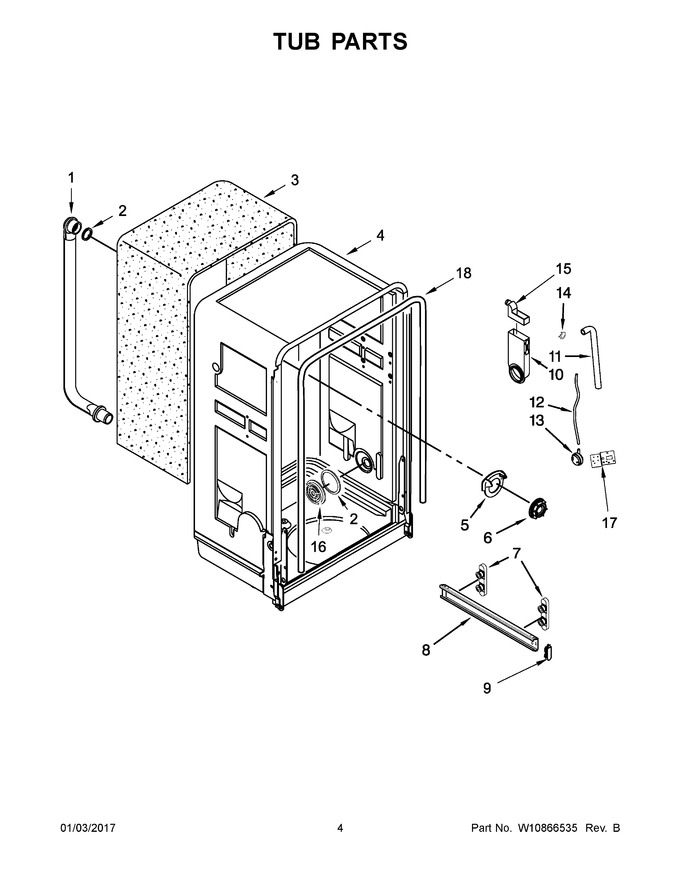

    View Diagram in Separate Window     Print Icon   Print Part List
