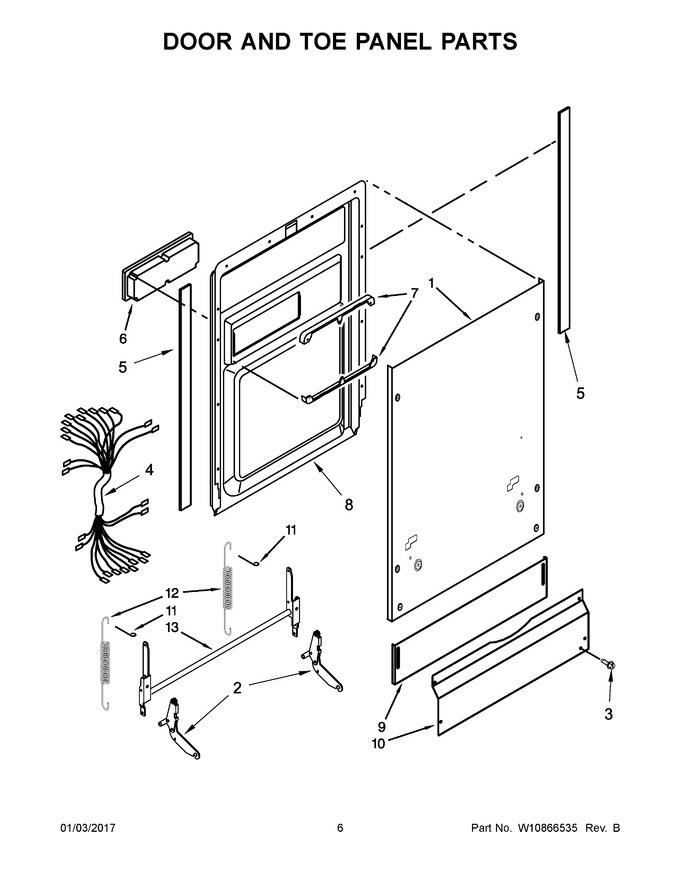

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10868369		Outer Door		Appelez-nous	-
2	W10567695		Hinge, Door (left Hand)				$ 208.35
3	W10517912		Screw (black)				$ 7.54
4	W10717644		Wiring Harness		Appelez-nous	-
5	W10868370		Guard, Inner Door (black)		Appelez-nous	-
6	W10717646		Dispenser				$ 205.61
7	W10567606		Bracket, Dispenser		Appelez-nous	-
8	W10717689		Door, Inner				$ 194.26
9	W10567715		Panel, Toe (black)				$ 63.95
10	WPW10567713		Panel, Access (black)   (Replaces: W10567713)				$ 126.60
11	W10567596		Pin, Door Spring				$ 15.25
12	W10567691		Spring, Door				$ 32.38
13	W10567692		Hinge, Bracket		Appelez-nous	-
2A	W10567694		Hinge, Door (right Hand)				$ 208.42
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11084038		Installation Hardware, Custom Panel   (Replaces: W11082803)				$ 19.10

    View Diagram in Separate Window       Print Part List
