View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

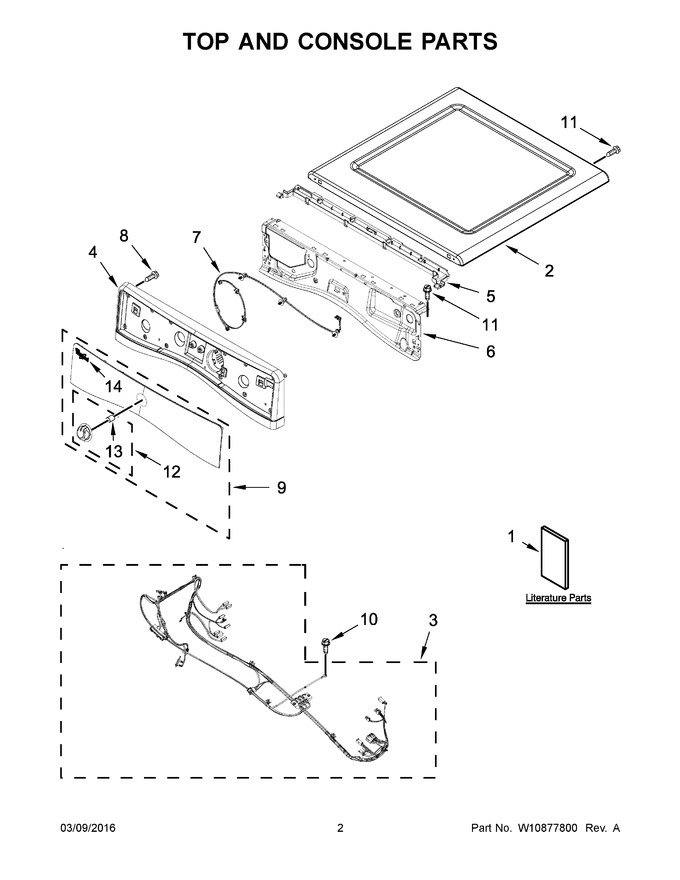

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10804688 | Use And Care Guide |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 308.50 | |||||
| 3 | W10801123 | Harness, Main Wiring |
|
$ 104.68 | |||||
| 4 | WPW10391519 | Panel, Console Assembly (white) (Replaces: W10391519) |
|
Immediately | $ 176.95 | ||||
| 5 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 86.61 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 75.41 | |||||
| 7 | W10837344 | Cable, User Interface (Replaces: W10540653) |
|
$ 32.01 | |||||
| 8 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.82 | |||||
| 9 | W10919212 | Assembly, Overlay (white) (Replaces: W10783679) |
|
$ 555.48 | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 12 | W10875909 | Assembly, Timer Knob (white) (Replaces: W10783726) |
|
Immediately | $ 52.99 | ||||
| 13 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 14 | W11178521 | Badge (white) (Replaces: W10387117) |
|
Immediately | $ 63.13 | ||||
| 1A | W10775221 | Installation Instructions |
|
- | |||||
| 1B | W10806847 | Tech Sheet |
|
- | |||||
| 1C | W10804378 | Wiring Diagram |
|
- | |||||
| 1D | W10804668 | Quick Start Guide |
|
- | |||||
| 2A | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 289.19 | |||||
| 4A | W10876224 | Panel, Console Assembly (chrome Shadow) (Replaces: W10463690) |
|
$ 386.81 | |||||
| 9A | W10919215 | Assembly, Overlay (chrome Shadow) (Replaces: W10783680) |
|
$ 596.24 |
