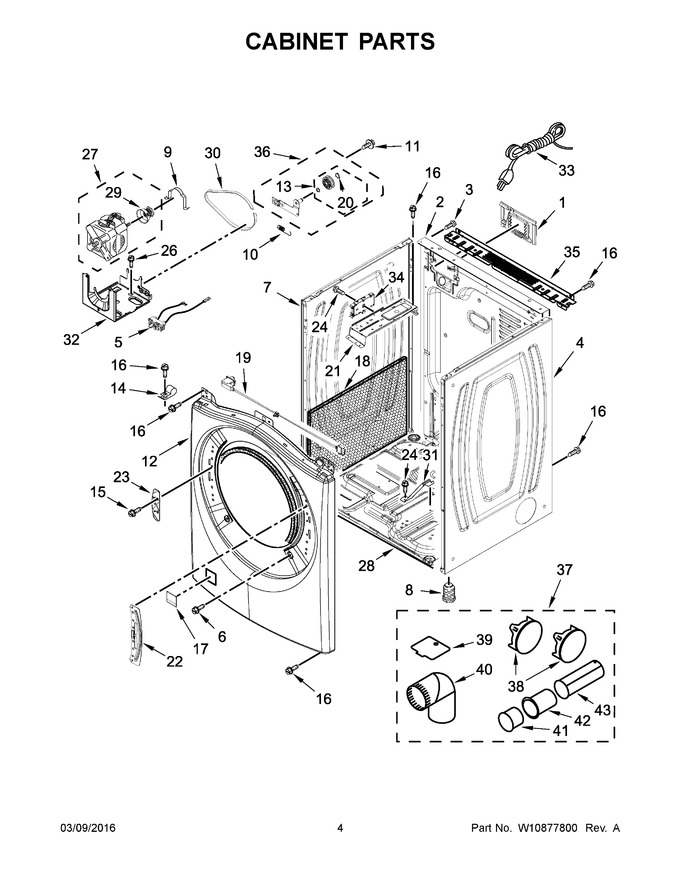

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317339)		Appelez-nous	-
2	W10487430		Panel, Rear			Immediately	$ 340.11
3	W10850756		Screw   (Replaces: 8533974)				$ 7.76
4	W11310043		Panel, Side (r.h.) (white)   (Replaces: W10469589)				$ 293.46
5	W11662087		Switch, Broken Belt   (Replaces: W10774832)				$ 52.35
6	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
7	W11233548		Panel, Side (l.h.) (white)   (Replaces: W10468495)				$ 248.89
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 25.68
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 24.57
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.02
12	W10363953		Panel, Front (white)				$ 182.23
13	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
14	3978776		Bracket, Gas Pipe		Appelez-nous	-
15	W11661566		Screw   (Replaces: W10288126)				$ 14.03
16	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
17	W10811916		Plug, Front Panel (white)   (Replaces: 8564457)				$ 15.71
18	W10123956		Panel, Dampening		Appelez-nous	-
19	WPW10350906		Assembly, Door Switch   (Replaces: W10350906)			Immediately	$ 77.61
20	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
21	W10259611		Bracket, Control				$ 127.30
22	W10208218		Bracket, Door Hinge				$ 15.16
23	WPW10208250		Strike, Door   (Replaces: W10208250)				$ 41.77
24	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
25	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
26	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
27	W11511154		Assembly, Motor   (Replaces: W10806758)			Immediately	$ 269.07
28	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 347.96
29	WP8066184		Pulley, Motor   (Replaces: 8066184)			Immediately	$ 51.02
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
32	W11481730		Bracket, Motor Mounting   (Replaces: W10242878)			Immediately	$ 87.83
33	W11628810		Cord, Power   (Replaces: 3401401)				$ 97.05
34	W11537215		Control Board   (Replaces: W10847936)			Immediately	$ 340.42
35	WPW10208382		Bracket, Rear   (Replaces: W10208382)				$ 41.56
36	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 35.78
37	W10323246		Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Vent			Immediately	$ 85.68
38	WPW10404617		Plug, Multivent (white)   (Replaces: W10404617)				$ 71.98
39	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 8.96
40	WPW10416072		Elbow   (Replaces: W10416072)				$ 26.82
41	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 78.95
42	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 91.38
43	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 88.80
12A	WPW10463309		Panel, Front (chrome Shadow)   (Replaces: W10463309)				$ 338.08
17A	W10391496		Plug, Front Panel (chrome Shadow)		Appelez-nous	-
4A	W11321018		Panel, Side (r.h.) (chrome Shadow)   (Replaces: W10474189)				$ 295.95
7A	W11315726		Panel, Side (l.h.) (chrome Shadow)   (Replaces: W10468496)			Immediately	$ 306.32
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
