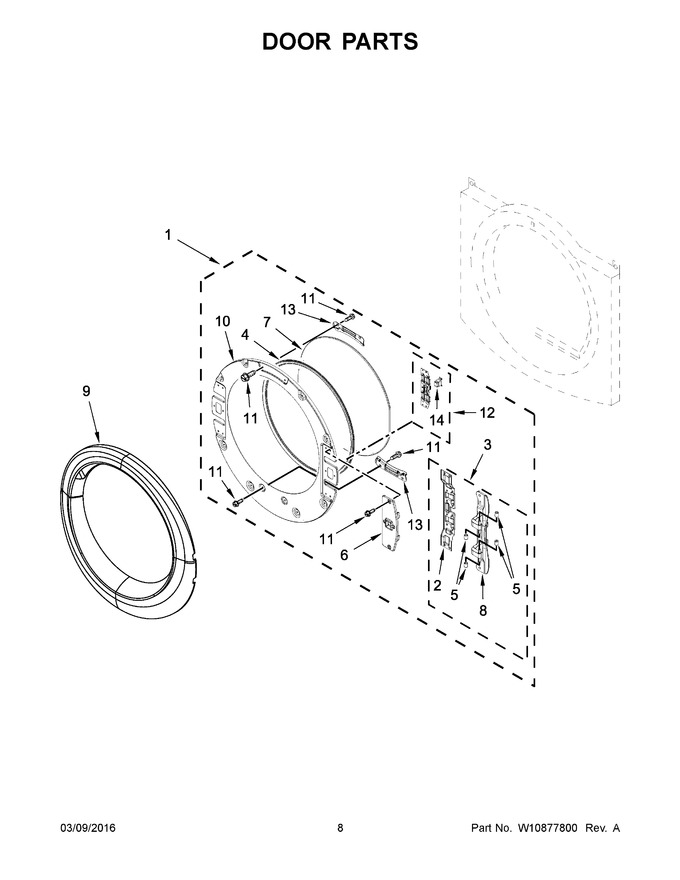

Diagram for 05 - Door Parts
05 - Door Parts

Diagram for 06 - Burner Assembly Parts
06 - Burner Assembly Parts

Diagram for 07 - Optional Parts (not Included)
07 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10796062 Door Assembly, Inner Appelez-nous -
2 WPW10208415 Hinge, Base   (Replaces: W10208415) In-Stock Immediately $ 117.42

3 W11051465 Assembly, Door Hinge   (Replaces: W10208414) In-Stock Immediately $ 98.31

4 W11310035 Seal, Glass   (Replaces: W10329710) In-Stock Immediately $ 86.79

5 WPW10208398 Cap, Hinge   (Replaces: W10208398) In-Stock Immediately $ 21.47

6 W10772469 Cover, Door Catch   (Replaces: W10208413) Special Order $ 81.30

7 W10749947 Glass, Door Special Order $ 300.20

8 WPW10208419 Plate, Hinge Retainer   (Replaces: W10208419) Special Order $ 81.85

9 W11168739 Door Assembly, Outer   (Replaces: W10808338) Special Order $ 400.07

10 W10267837 Door, Inner Special Order $ 188.98

11 W11661566 Screw   (Replaces: W10288126) Special Order $ 14.03

12 WPW10208254 Assembly, Door Catch   (Replaces: W10208254) Special Order $ 81.28

13 W10208252 Bracket, Glass Appelez-nous -
14 W11240283 Assembly, Spring Catch   (Replaces: W10208401) In-Stock Immediately $ 28.04


    View Diagram in Separate Window     Print Icon   Print Part List
