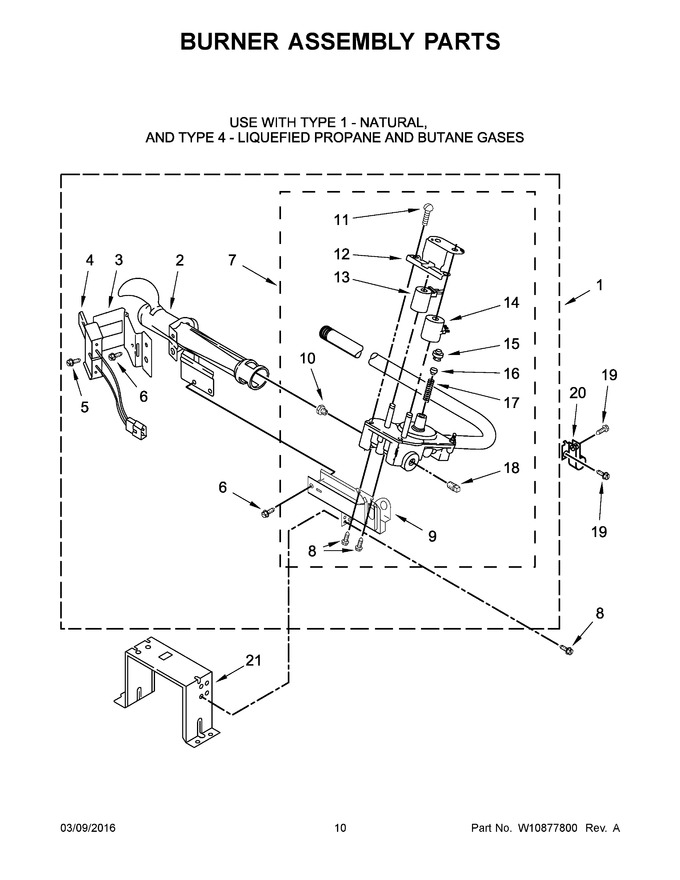

06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	280119		Burner Assembly 60 Hz. (type 1)(white Rodgers)   (Replaces: 8576353)				$ 416.13
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 179.88
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 25.92
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw   (Replaces: 3393909)				$ 7.50
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
7	WPW10118347		Valve, Gas 60 Hz. (complete)   (Replaces: W10118312)			Immediately	$ 337.63
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.19
9	3389871		Base, Burner				$ 79.29
10	WP15418		Orifice, Burner (type 1 (natural))   (Replaces: 15418)				$ 35.54
11	694421		Screw, Coil		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 32.85
14	279834		Coil, 60 Hz (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 32.85
15	WP694424		Leak, Limiter   (Replaces: 694424)				$ 34.57
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.95
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 24.27
18	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
19	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
20	3387561		Clamp, Pipe		Appelez-nous	-
21	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
10A	15422		Orifice, Burner (type 4 (butane))				$ 3,441.42
10B	WP229742		Orifice, Burner (type 4 (propane))   (Replaces: 234867)				$ 34.85
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11581317		Conversion Kit (type 1 To Type 4 Lpg)   (Replaces: 8576846)			Immediately	$ 93.17
