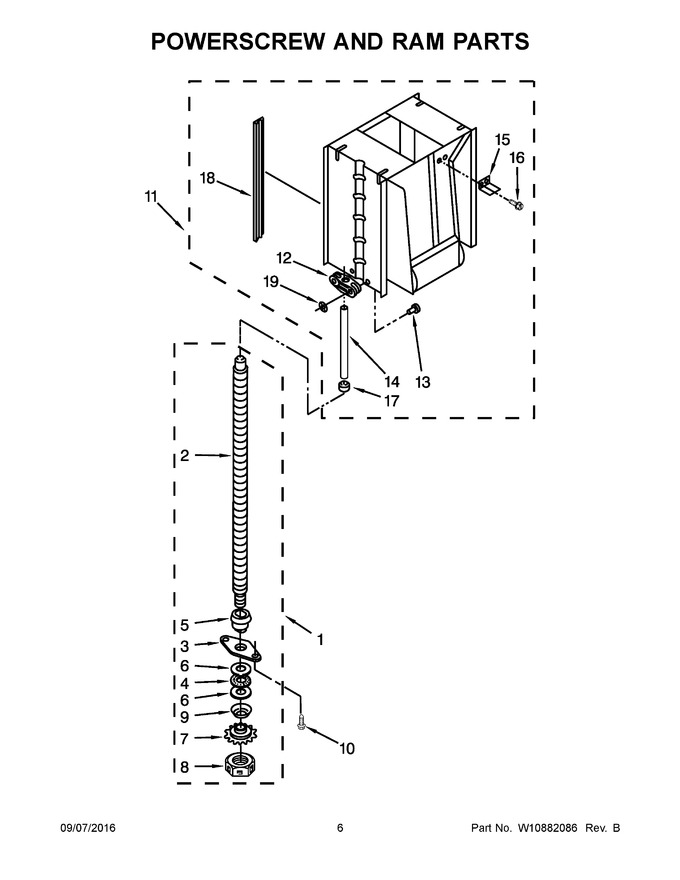

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10451272		Screw, Power Complete Assembly   (Replaces: 9870500)			Immediately	$ 264.80
2	N/P		Screw, Power (available Only As Complete Assembly)		Appelez-nous	-
3	779121		Plate, Bearing				$ 29.22
4	W10917043		Bearing, Needle   (Replaces: 775482)				$ 14.47
5	776941		Hub, Power Screw				$ 28.14
6	775481		Race, Thrust				$ 52.61
7	W11679164		Sprocket, Washer   (Replaces: 777385)		Appelez-nous	-
8	4154842		Nut, Power Screw		Appelez-nous	-
9	WP777332		Washer, Cone   (Replaces: 777332)				$ 7.30
10	WP8204624		Screw   (Replaces: 9871067)				$ 17.48
11	W11696573		Ram Assembly   (Replaces: 9871251)				$ 334.76
12	WP9870163		Nut, Power   (Replaces: 9870163)				$ 98.72
13	882694		Stud   (Replaces: 9870187)				$ 8.32
14	WP9870037		Stop, Ram   (Replaces: 9870037)				$ 8.88
15	W11684541		Bracket, Top Limit Switch   (Replaces: 9870498)		Appelez-nous	-
16	WP489399		Screw   (Replaces: 489399)				$ 7.30
17	W11724671		Cap, Stop   (Replaces: 9870775)				$ 13.76
18	W10917246		Slide, Ram   (Replaces: 9870169)				$ 125.52
19	8534092		Clip		Appelez-nous	-
