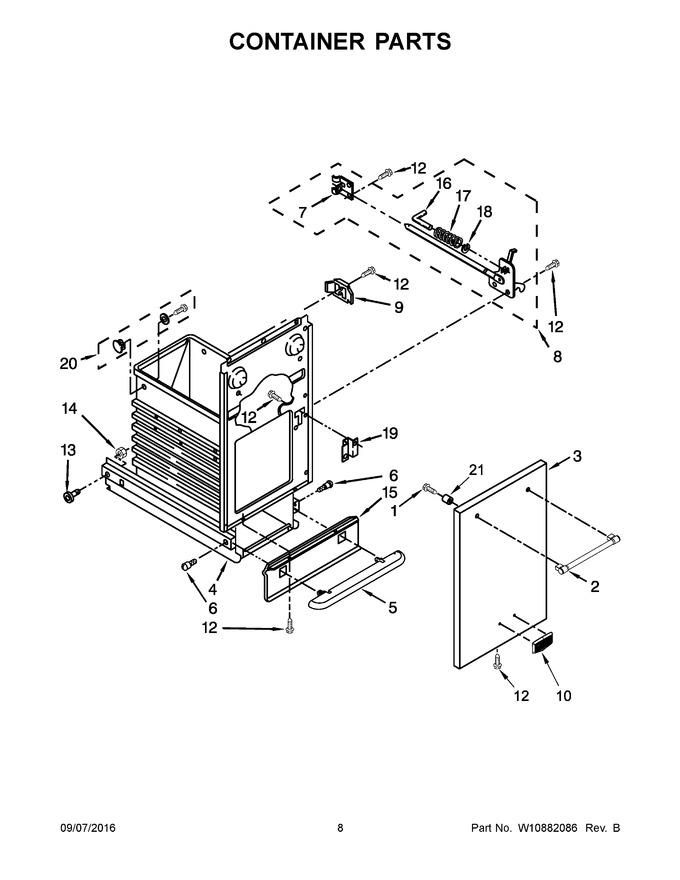

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10661526		Screw				$ 13.38
2	W10921746		Handle, Container (black)   (Replaces: W10888679)		Appelez-nous	-
3	W10646555		Panel, Container (includes Nameplate) (black)		Appelez-nous	-
4	WPW10451276		Container Assembly   (Replaces: 9870934)				$ 486.21
5	W11636605		Pedal, Foot (black)   (Replaces: 9871989B)				$ 62.74
6	WP780263		Screw   (Replaces: 780263)				$ 7.85
7	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 93.43
8	675379		Latch Assembly   (Replaces: 9870066)				$ 173.84
9	9871125		Actuator, Safety Switch				$ 27.97
10	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 40.34
12	WP489478		Screw   (Replaces: W10001260)				$ 7.75
13	WP9871602		Bearing, Container Roller   (Replaces: 9871602)				$ 13.21
14	WP776356		Locknut   (Replaces: 776356)				$ 7.85
15	WPW10242557		Plate, Toe Guard (black)   (Replaces: 777328)				$ 135.74
16	W11705836		Pin, Latch   (Replaces: 776654)		Appelez-nous	-
17	775736		Spring, Latch				$ 89.33
18	W11679168		Ring, "e   (Replaces: 775735)		Appelez-nous	-
19	775665		Plate, Latch				$ 59.42
20	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
21	WP9871563		Spacer, Handle   (Replaces: 9871563)				$ 10.71
15A	W10917704		Plate, Toe Guard (white)   (Replaces: 9871030)		Appelez-nous	-
2A	W10921747		Handle, Container (white)   (Replaces: W10888674)		Appelez-nous	-
2B	W10873933		Handle, Container (stainless)   (Replaces: W10861963)		Appelez-nous	-
3A	W10646556		Panel, Container (includes Nameplate) (white)		Appelez-nous	-
3B	W10646557		Panel, Container (includes Nameplate) (stainless)		Appelez-nous	-
5A	9871989W		Pedal, Foot (white)		Appelez-nous	-
