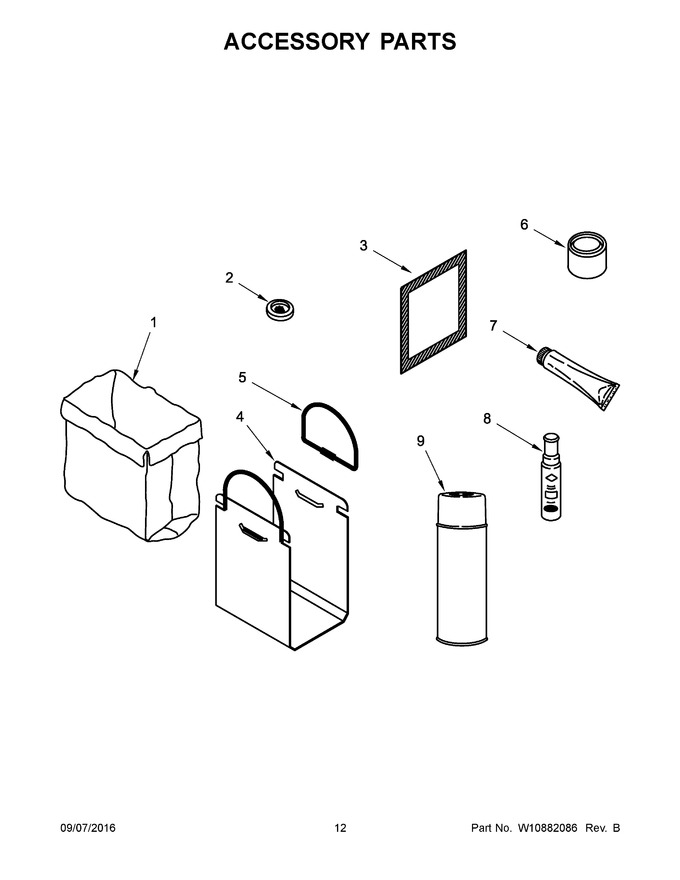

07 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10165295RP | Bag, Trash (15" Plastic) (15 Pack) (Replaces: 4318921) |
|
Immediately | $ 23.09 | ||||
| 2 | 777635 | Deodorizer, Solid Stick-ups (2 Pack) |
|
- | |||||
| 3 | W10540355 | Deodorizer Block (green Apple) (Replaces: 9872166GA) |
|
$ 15.13 | |||||
| 4 | 13030RP | Carrier, Bag (includes Item 5) |
|
Immediately | $ 55.55 | ||||
| 5 | WP777108 | Handle, Bag Carrier (Replaces: 777108) |
|
$ 35.23 | |||||
| 6 | 675351 | Grease 4 Oz. (use On Power Screw & Ram Pressure Pads) |
|
- | |||||
| 7 | WP279368 | Adhesive (2 Oz. Tube) (Replaces: 279368) |
|
Immediately | $ 110.91 | ||||
| 8 | WP72107 | Paint, Touch-up 1/2 Oz. (almond) (Replaces: 72107) |
|
$ 17.91 | |||||
| 9 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 51.44 | |||||
| 1A | 4318922 | Bag, Trash (15" Plastic) (60 Pack) |
|
- | |||||
| 1B | W10165295BU | Bag, Trash (15" Plastic) (12 Boxes Of 15 Pack) |
|
Immediately | $ 228.91 | ||||
| 1C | 675186 | Bag, Trash (15" Paper) (12 Pack) |
|
$ 22.83 | |||||
| 1D | 882652 | Bag, Trash (15" Paper) (48 Pack) |
|
$ 82.10 | |||||
| 3A | 9872166LG | Deodorizer Block (lemongrove) |
|
- | |||||
| 3B | 9872166L | Deodorizer Block (lavender) |
|
- | |||||
| 8A | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 8B | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 8C | 4392899 | Paint, Touch-up 1/2 Oz. (biscuit/bisque) |
|
Immediately | $ 26.45 | ||||
| 8D | 8171571 | Paint, Touch-up 1/2 Oz. (cobalt Blue) |
|
$ 30.53 | |||||
| 8E | 8171651 | Paint, Touch-up 1/2 Oz. (hunter Green) |
|
$ 20.17 | |||||
| 8F | 8171652 | Paint, Touch-up 1/2 Oz. (empire Red) |
|
$ 30.22 | |||||
| 8G | 8171653 | Paint, Touch-up 1/2 Oz. (majestic Yellow) |
|
- | |||||
| 9A | 285006 | Paint, Spray 13 Oz. (black) |
|
$ 57.04 | |||||
| 9B | 4392901 | Paint, Spray 13 Oz. (biscuit/bisque) |
|
- | |||||
| 9C | 350930 | Paint, Spray 13 Oz. (white) |
|
Immediately | $ 38.21 | ||||
| NI | N/P | Optional Parts Not Illustrated |
|
- | |||||
| NI | W10083931A | Handle Kit (previous Architect Series) (stainless) (Replaces: 8564945) |
|
$ 93.53 |
