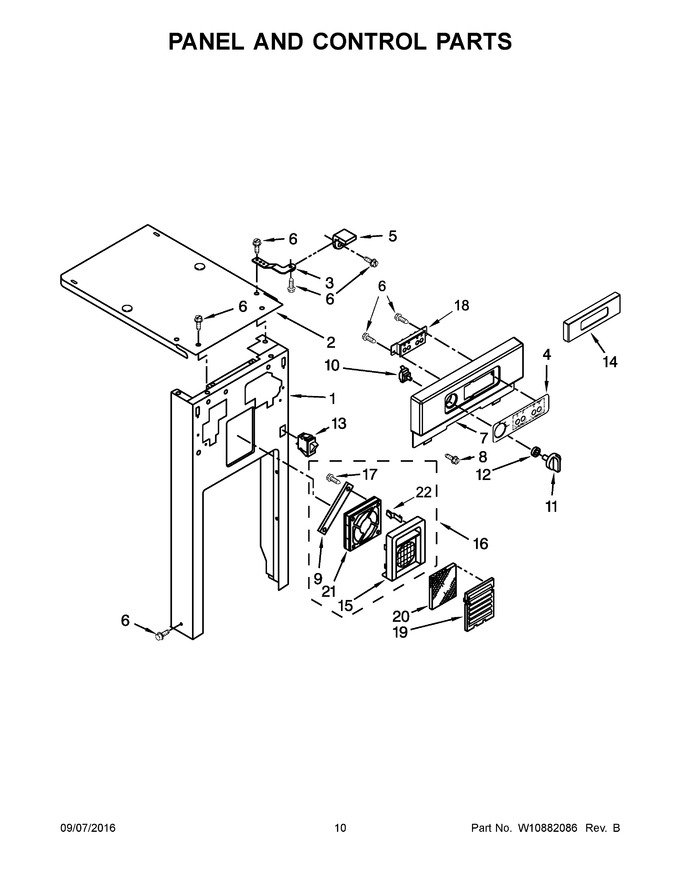

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9871072		Panel, Front Frame (black)				$ 246.38
2	9871825		Cover-top, Recessed		Appelez-nous	-
3	W11729437		Bracket, Retainer   (Replaces: 9871993)			Immediately	$ 24.48
4	W10669536		Insert, Escutcheon (black)		Appelez-nous	-
5	WP780239		Bracket, Mounting   (Replaces: 780239)				$ 28.53
6	WP489478		Screw   (Replaces: W10001260)				$ 8.18
7	9872144B		Escutcheon, Control (black)		Appelez-nous	-
8	246131		Screw		Appelez-nous	-
9	4152703		Strap, Fan				$ 75.32
10	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 246.48
11	W10888699		Knob, Rotary Switch (black)		Appelez-nous	-
12	WP777383		Nut   (Replaces: 777383)				$ 12.83
13	9871829		Switch, Drawer (black)				$ 93.95
14	9872162S		Cover, Console (stainless Model Only)		Appelez-nous	-
15	9871893		Compartment, Air Freshener   (Replaces: 4151442)				$ 348.34
16	9871893		Fan Mount Assembly				$ 348.34
17	WP3351614		Screw   (Replaces: 780034)			Immediately	$ 7.30
18	W10723643		Switch Assembly		Appelez-nous	-
19	WP9871099		Cover, Air Freshener (black)   (Replaces: 9871099)				$ 71.65
20	WP4151750		Filter Element   (Replaces: 4151750)				$ 18.60
21	9871893		Fan, Filter   (Replaces: 9871051)				$ 348.34
22	4151897		Clip				$ 7.40
11A	W10888697		Knob, Rotary Switch (white)		Appelez-nous	-
11B	W10647673		Knob, Rotary Switch (stainless)		Appelez-nous	-
4A	W10669537		Insert, Escutcheon (white)		Appelez-nous	-
4B	W10669535		Insert, Escutcheon (grey)		Appelez-nous	-
7A	9872144W		Escutcheon, Control (white)		Appelez-nous	-
