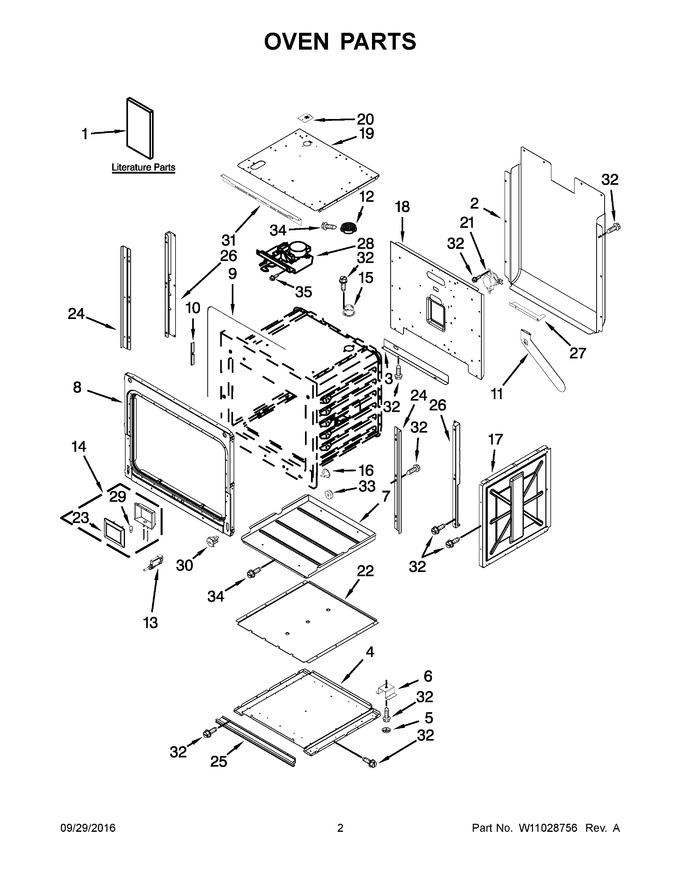

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10221384 | Instructions, Installation (english/french) |
|
- | |||||
| 2 | 2624F043-51 | Back, Main |
|
- | |||||
| 3 | 3601F343-51 | Baffle, Grease Deflector |
|
- | |||||
| 4 | W10280326 | Panel, Bottom |
|
- | |||||
| 5 | 8038P035-60 | Foot, Plastic |
|
$ 20.82 | |||||
| 6 | W10213759 | Support, Air Channel |
|
- | |||||
| 7 | 3401F079-45 | Pan, Hidden Bake |
|
- | |||||
| 8 | W10186993 | Frame, Front |
|
- | |||||
| 9 | W10213819 | Gasket |
|
$ 119.94 | |||||
| 10 | W10176218 | Retainer, Gasket |
|
$ 9.46 | |||||
| 11 | 4006W218-45 | Assembly, Box Vent |
|
- | |||||
| 12 | 8034P008-60 | Screen, Smoke Eliminator |
|
$ 25.43 | |||||
| 13 | W10286173 | Switch, Micro |
|
$ 64.24 | |||||
| 14 | W10175989 | Assembly, Light |
|
$ 111.33 | |||||
| 15 | 8026P066-60 | Tube, Vent |
|
- | |||||
| 16 | 7718P021-60 | Plug, Button |
|
- | |||||
| 17 | W10175995 | Panel, Side |
|
- | |||||
| 18 | W10213725 | Retainer, Rear Insulation |
|
- | |||||
| 19 | W10175999 | Panel, Top Retainer |
|
- | |||||
| 20 | W10213792 | Cover, Vent |
|
$ 140.20 | |||||
| 21 | WP7403P899-60 | Switch, High Limit (Replaces: 7403P899-60) |
|
Immediately | $ 211.50 | ||||
| 22 | W10280323 | Channel, Bottom Air |
|
- | |||||
| 23 | WP74004607 | Lens, Light (Replaces: W10187003) |
|
$ 23.44 | |||||
| 24 | W10277588 | Trim, Side |
|
$ 174.85 | |||||
| 25 | W10176037 | Trim, Bottom Vent (stainless) |
|
$ 157.91 | |||||
| 26 | W10277423 | Bracket, Reinforcement (left Hand) |
|
$ 35.20 | |||||
| 27 | W10186984 | Cover, Rear |
|
- | |||||
| 28 | WPW10213755 | Latch, Door Lock (Replaces: W10213755) |
|
$ 369.08 | |||||
| 29 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 47.38 | ||||
| 30 | W10213745 | Frame, Micro Switch |
|
$ 9.83 | |||||
| 31 | W10176019 | Trim, Control Panel |
|
- | |||||
| 32 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 33 | 7109P085-60 | Washer (rubber) |
|
$ 7.53 | |||||
| 34 | WP489464 | Screw (Replaces: W10236129) |
|
Immediately | $ 8.38 | ||||
| 35 | W10236043 | Screw |
|
$ 76.14 | |||||
| 1A | W10221392 | Guide, Use And Care (combo) |
|
- | |||||
| 1B | W10221391 | Guide, Use And Care (microwave) |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10213735 | Sheet, Tech (english) |
|
- | |||||
| 1F | W10213736 | Sheet, Tech (french) |
|
- | |||||
| 26A | W10277424 | Bracket, Reinforcement (right Hand) |
|
$ 33.58 | |||||
| NI | W10186990 | Insulation, Wrap |
|
- | |||||
| NI | W10213747 | Insulation, Back |
|
- | |||||
| NI | W10176212 | Harness, Main |
|
- | |||||
| NI | W10174375 | Harness, Signal Extended |
|
Immediately | $ 69.57 | ||||
| NI | 461968971522 | Harness, Main Mwo |
|
Immediately | $ 156.78 | ||||
| NI | W10277591 | Harness, Comm Mwo |
|
Immediately | $ 73.17 | ||||
| NI | W10176216 | Harness, Latch (no Meat Probe) |
|
$ 92.28 | |||||
| NI | W10513963 | Harness, Inverter |
|
- | |||||
| NI | W10277613 | Harness, Comm Cmb Power |
|
Immediately | $ 72.11 | ||||
| NI | 461967903621 | Harness, Turntable And Fan |
|
- | |||||
| NI | W10176182 | Conduit, Combo |
|
$ 31.37 | |||||
| NI | 4454949 | Holder, Fuse |
|
$ 95.24 | |||||
| NI | WPW10017410 | Fuse, Time Delay (Replaces: W10017410) |
|
Immediately | $ 22.23 | ||||
| NI | W10288001 | Microswitch (sdt-s-124lmr Oeg) |
|
- | |||||
| NI | W10288002 | Microswitch (g5g-1a-ps 24v) |
|
- |
