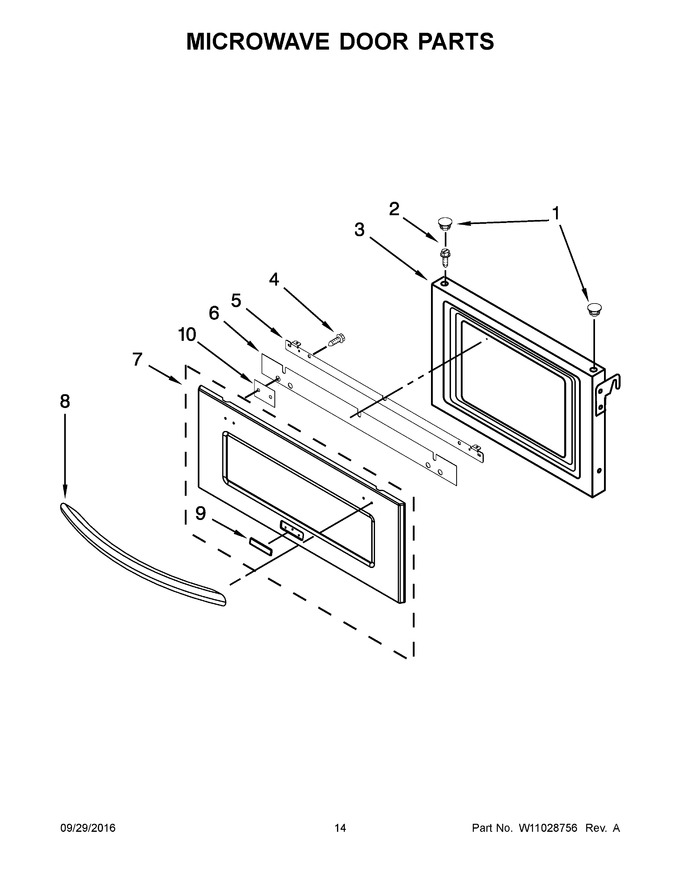

08 - Microwave Door Parts


09 - Top Support Parts And Turntable


10 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
3	W10737654		Door, Microwave		Appelez-nous	-
4	W10267047		Screw				$ 13.47
5	W10176199		Bracket, Handle (stainless)				$ 42.18
6	W10213722		Pad, Handle (black)				$ 84.48
7	WPW10269424		Glass, Assembly (stainless)   (Replaces: W10269424)				$ 524.16
8	W10186760		Handle, Door (stainless)				$ 295.11
9	WPW10214168		Badge (stainless)   (Replaces: W10214168)				$ 85.95
10	W10314607		Spacer, Handle		Appelez-nous	-
