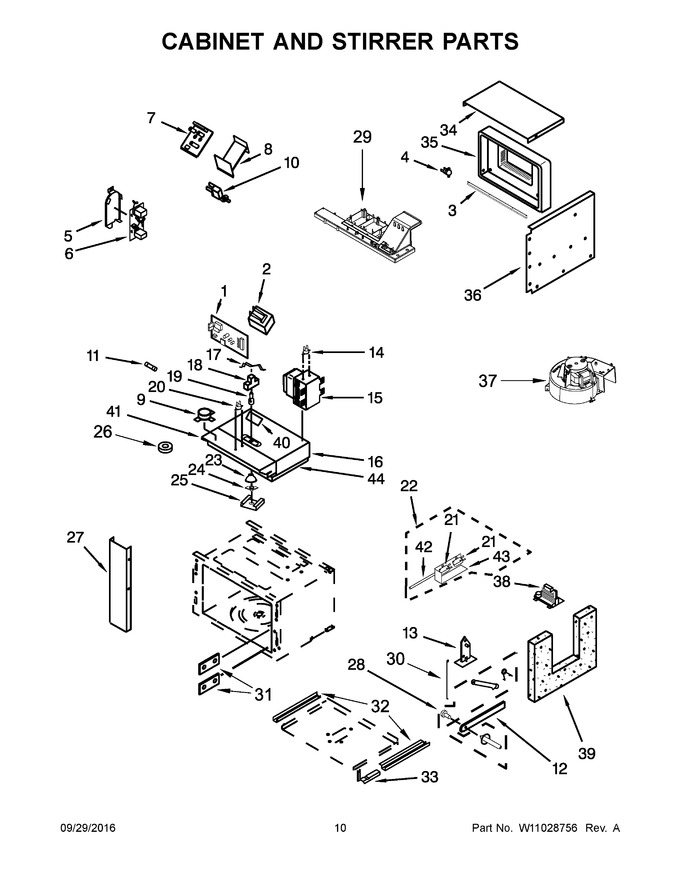

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10626304 | Appliance Manager, Microwave |
|
$ 190.47 | |||||
| 2 | W11238401 | Transformer, Light (20v) (Replaces: 461967848621) |
|
Immediately | $ 360.89 | ||||
| 3 | W10291274 | Bracket, Wires Support |
|
- | |||||
| 4 | W11607085 | Thermostat (Replaces: W10120223) |
|
Immediately | $ 44.42 | ||||
| 5 | N/P | Holder, Noise Filter (not Serviced) |
|
- | |||||
| 6 | W11398764 | Filter, Noise (Replaces: W10692851) |
|
Immediately | $ 204.55 | ||||
| 7 | W10578541 | Control, Electric Converter |
|
$ 193.10 | |||||
| 8 | N/P | Holder, Control (not Serviced) |
|
- | |||||
| 9 | W10460457 | Sensor, Humidity |
|
Immediately | $ 132.65 | ||||
| 10 | 461967842541 | Thermoactuator (Replaces: 4375427) |
|
$ 72.29 | |||||
| 11 | W11188752 | Fuse (Replaces: 241908600053) |
|
Immediately | $ 17.37 | ||||
| 12 | W11214480 | Arm, Sliding (Replaces: 461967750483) |
|
$ 100.54 | |||||
| 13 | W11684510 | Support (Replaces: 461967750494) |
|
Immediately | $ 15.52 | ||||
| 14 | W11233913 | Thermostat, Magnetron (Replaces: 461967846741) |
|
Immediately | $ 156.08 | ||||
| 15 | W11346197 | Magnetron (Replaces: 461967847321) |
|
Immediately | $ 271.25 | ||||
| 16 | N/P | Panel, Top (not Serviced) |
|
- | |||||
| 17 | W10465869 | Spring, Lamp |
|
Immediately | $ 103.76 | ||||
| 18 | WPW10490593 | Holder, Lamp (Replaces: W10490593) |
|
$ 77.82 | |||||
| 19 | W10886919 | Lamp, Halogen (Replaces: W10795595) |
|
Immediately | $ 32.22 | ||||
| 20 | W10287985 | Thermostat |
|
$ 98.13 | |||||
| 21 | W10211972 | Switch (Replaces: W10330566) |
|
Immediately | $ 52.40 | ||||
| 22 | 461968971522 | Assembly, Interlock (Replaces: W10358246) |
|
Immediately | $ 156.78 | ||||
| 23 | 423107022541 | Reflector |
|
$ 85.90 | |||||
| 24 | W11193483 | Lens, Lamp (Replaces: 423107720491) |
|
Immediately | $ 104.82 | ||||
| 25 | W11440819 | Clip, Spring (Replaces: 461967010591) |
|
$ 23.00 | |||||
| 26 | W10769147 | Sealing, Lamp |
|
Immediately | $ 24.49 | ||||
| 27 | 461967013732 | Trim, Side (left) |
|
- | |||||
| 28 | WPW10128850 | Assembly, Sliding Arm (Replaces: W10128850) |
|
Immediately | $ 142.08 | ||||
| 29 | 461967753451 | Duct, Magnetron |
|
- | |||||
| 30 | W11700292 | Spring, Torsion (Replaces: 461967570351) |
|
$ 72.30 | |||||
| 31 | W10915651 | Plate, Cover (Replaces: 461967451001) |
|
Immediately | $ 88.90 | ||||
| 32 | 8205707 | Support, Bottom (Replaces: 461967008461) |
|
Immediately | $ 68.79 | ||||
| 33 | W10874474 | Hinge, Door (Replaces: 461968979601) |
|
Immediately | $ 63.12 | ||||
| 34 | N/P | Panel, Top (not Serviced) |
|
- | |||||
| 35 | N/P | Panel, Rear (not Serviced) |
|
- | |||||
| 36 | N/P | Panel, Side (not Serviced) |
|
- | |||||
| 37 | W11344874 | Assembly, Cooling Fan (Replaces: 461968969271) |
|
Immediately | $ 191.74 | ||||
| 38 | W10217711 | Inverter (Replaces: W10468206) |
|
Immediately | $ 289.63 | ||||
| 39 | N/P | Insulation, Side (not Serviced) |
|
- | |||||
| 40 | N/P | Hatch, Top (not Serviced) |
|
- | |||||
| 41 | N/P | Panel, Top (not Serviced) |
|
- | |||||
| 42 | WPW10120235 | Rod, Release (Replaces: W10120235) |
|
Immediately | $ 7.32 | ||||
| 43 | WP8205683 | Holder, Switch (Replaces: 8205683) |
|
Immediately | $ 99.41 | ||||
| 44 | N/P | Panel, Top (not Serviced) |
|
- | |||||
| 27A | 461967013722 | Trim, Side (right) |
|
- |
