SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven Parts

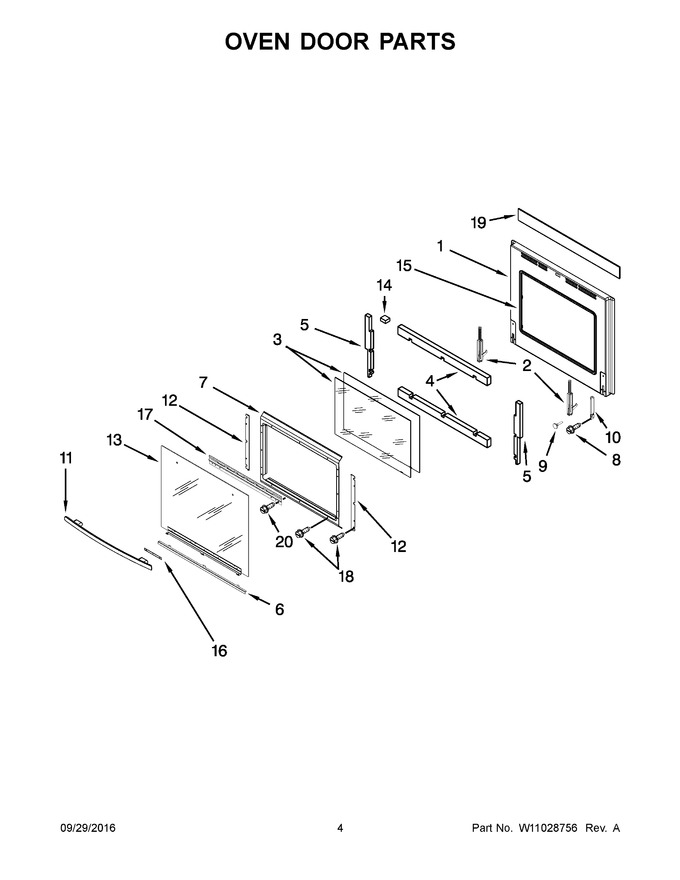

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Control Panel Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Support Parts And Turntable


10 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10187020		Liner, Door				$ 228.55
2	W10277752		Hinge, Door (stainless)				$ 70.97
3	W10176101		Glass, Inner				$ 92.82
4	W10273677		Insulation, Door (horizontal)		Appelez-nous	-
5	W10273591		Insulation, Door (vertical)				$ 39.20
6	W10176176		Bracket, Door Clip		Appelez-nous	-
7	W10176105		Retainer, Door Glass		Appelez-nous	-
8	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
9	W10176233		Bumper, Door		Appelez-nous	-
10	W10175993		Hinge, Receiver				$ 44.06
11	W10186760		Handle, Door (stainless)				$ 295.11
12	W10186882		Bracket, Inner Door Glass				$ 29.84
13	W10401224		Glass, Outer Door Assy. (stainless)   (Replaces: W10176228)				$ 542.71
14	W11684783		Insulation, Corner Door   (Replaces: W10296505)		Appelez-nous	-
15	W10213804		Glass, Cavity				$ 91.77
16	W10213722		Pad, Handle Foam (black)				$ 84.48
17	W10176126		Bracket, Handle (stainless)				$ 160.61
18	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
19	W10277580		Insulation, Door		Appelez-nous	-
20	W10267047		Screw				$ 13.47

    View Diagram in Separate Window       Print Part List
