Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10721179 Use And Care Guide Appelez-nous -
2 N/P Cabinet (not Serviced) Appelez-nous -
3 2307584 Grommet, Crossover Tube Special Order $ 23.40

4 WPW10138054 Assembly, Roller   (Replaces: W10138054) Special Order $ 45.34

5 W10860229 Assembly, Support Base (left Hand)   (Replaces: W10279275) Special Order $ 381.83

6 WP1163283 Screw   (Replaces: 1163283) Special Order $ 7.55

7 W10745694 Assembly, Top Switch Jumper Wire Special Order $ 125.60

8 WP8281164 Screw (stainless)   (Replaces: 8281164) Special Order $ 11.33

9 W10839844 Bracket, Grill Mounting   (Replaces: 2307640) Special Order $ 43.26

10 W10663352 Clip Special Order $ 21.91

11 W11474472 Screw   (Replaces: W10162602) In-Stock Immediately $ 8.63

12 W11690636 Line, Water   (Replaces: W10577944) Special Order $ 130.54

13 W11291510 Assembly, Drain Tube   (Replaces: W10702350) Special Order $ 76.97

14 2006841 Ring, Retainer Special Order $ 92.66

15 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

16 2005032 Leveler, Adjustable In-Stock Immediately $ 200.07

17 2318189 Tray, Filter Drip Special Order $ 148.73

18 2257644 Hinge, Top Special Order $ 177.98

19 W11246413 Valve, Isolation (no Flow Washer)   (Replaces: W10578757) In-Stock Immediately $ 132.98

20 WP8533928 Screw   (Replaces: 8533928) In-Stock Immediately $ 8.26

21 2006617 Bracket, Base Support (rear) Appelez-nous -
22 2207470 Shim, Door Hinge In-Stock Immediately $ 52.27

23 WPW10121140 Housing, Water Filter   (Replaces: W10121140) In-Stock Immediately $ 171.96

24 W11805224 Spring, Door Closure (green)   (Replaces: 2221242) Appelez-nous -
25 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

26 EDR3RXD1B Filter, Water   (Replaces: W10121146) In-Stock Immediately $ 49.99

27 2320559 Support, Valve Special Order $ 88.79

28 W11755873 Bracket, Filter   (Replaces: W10674648) Special Order $ 80.33

29 2005101 Hinge, Door Special Order $ 100.93

30 WP489464 Screw   (Replaces: W10001250) In-Stock Immediately $ 8.38

31 WP2260503B Button, Water Filter (black)   (Replaces: 2260503B) Special Order $ 76.42

32 WPW10188547 Skirt, Grille (black)   (Replaces: W10188547) In-Stock Immediately $ 165.28

33 WP489464 Screw   (Replaces: W10005050) In-Stock Immediately $ 8.38

34 W11739145 Grille, Bottom   (Replaces: W10189196) In-Stock Immediately $ 209.08

35 2215612 Cover, Air Duct Appelez-nous -
36 WPW10121046 Assembly, Light Switch Cam (left Hand)   (Replaces: W10121046) In-Stock Immediately $ 83.71

37 W10741112 Bracket, Switch (left Hand) Special Order $ 67.37

38 2215938 Cover, Switch Special Order $ 94.78

39 W11238395 Cap, Water Filter (black)   (Replaces: W10797527) In-Stock Immediately $ 50.68

40 W11721628 Screw   (Replaces: 8533913) In-Stock Immediately $ 14.78

41 W11384469 Switch, Rocker Arm   (Replaces: 1118894) In-Stock Immediately $ 39.09

42 W10188434 Cover, Gap (bottom) Special Order $ 67.95

43 WP488366 Clip, Water Tube   (Replaces: 2208136) Special Order $ 11.92

44 2005433 Spacer Special Order $ 23.33

45 WP9741232 Screw   (Replaces: 9741232) In-Stock Immediately $ 5.07

46 W10565837 Assembly, Water Valve Wire Special Order $ 86.39

47 WP2221240 Heater, Fill Tube   (Replaces: 2221240) Special Order $ 206.58

48 W10482373 Assembly, Fill Tube Heater Wire Special Order $ 125.10

49 W10619899 Tube, Filter Inlet Special Order $ 46.24

50 2317847 Assembly, Water Inlet Tube Special Order $ 86.35

51 WP1106508 Gasket, Seal   (Replaces: 1106508) In-Stock Immediately $ 10.43

52 W10635851 Tube, Filter Outlet Special Order $ 88.57

53 W11225845 Valve, Solenoid   (Replaces: W10574769) In-Stock Immediately $ 120.60

54 W10619291 Shield, Valve Electrical Appelez-nous -
55 WPW10141604 Screw   (Replaces: 487871) Special Order $ 8.85

1A W10632401 Energy Guide Appelez-nous -
1B W10906504 Wiring Diagram Appelez-nous -
1C W10721177 Installation Instructions Appelez-nous -
1D W10896706 Tech Sheet (english) Appelez-nous -
1E W10896708 Tech Sheet (french) Appelez-nous -
36A WP2307857 Assembly, Light Switch Cam (right Hand)   (Replaces: 2307857) In-Stock Immediately $ 79.30

37A W10741111 Bracket, Switch (right Hand) Special Order $ 67.37

5A W10860448 Assembly, Support Base (right Hand)   (Replaces: W10138423) In-Stock Immediately $ 383.00


    View Diagram in Separate Window     Print Icon   Print Part List

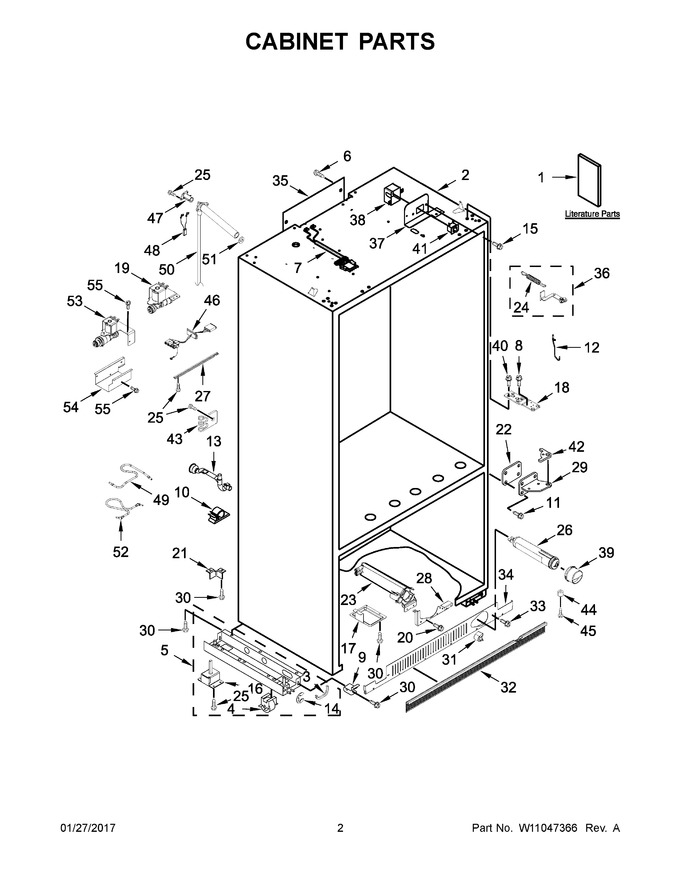

Diagram for KBBL306ESS01
