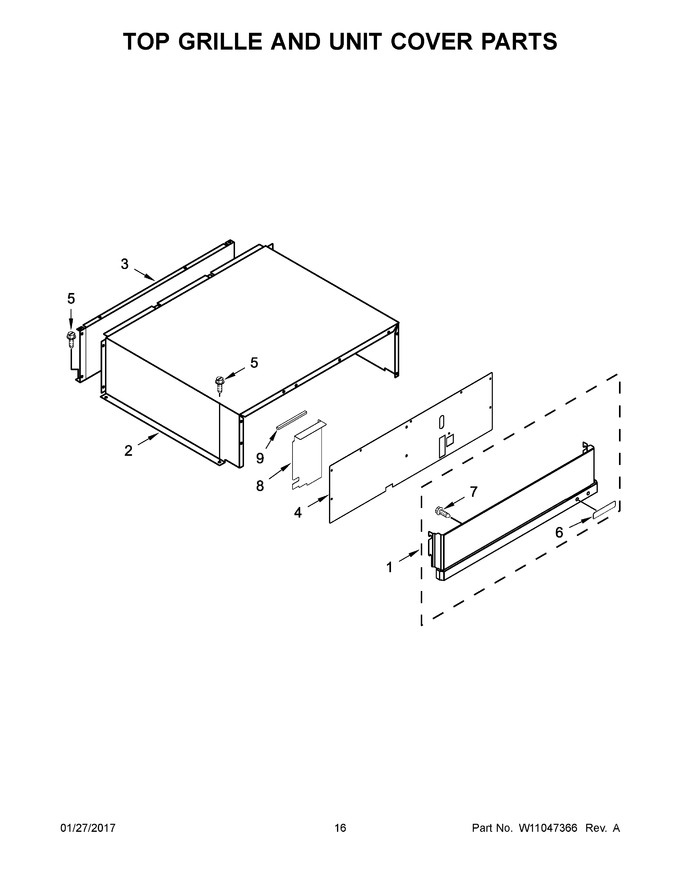

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11449308		Assembly, Top Grille Left Hand (stainless)   (Replaces: W10609649)				$ 365.37
2	W11735285		Cover, Unit   (Replaces: W10545068)			Immediately	$ 196.16
3	2256466		Panel, Unit Back				$ 327.22
4	W10694109		Cover, Unit Front				$ 180.57
5	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
6	W10909682		Nameplate (grey)   (Replaces: W10518672)			Immediately	$ 72.57
7	WP489399		Screw   (Replaces: 489399)				$ 6.95
8	W10645084		Divider, Air		Appelez-nous	-
9	W10645113		Gasket, Unit Cover		Appelez-nous	-
1A	W11449389		Assembly, Top Grille Right Hand (stainless)   (Replaces: W10645400)				$ 378.16
