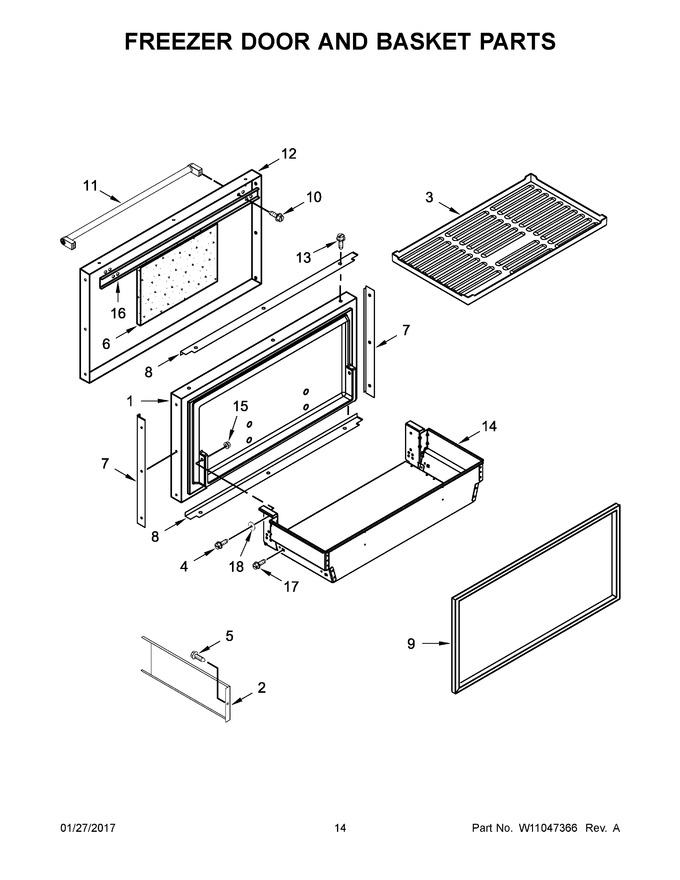

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827065		Door, Freezer   (Replaces: W10562030)		Appelez-nous	-
2	W10600711		Divider, Basket		Appelez-nous	-
3	W10665412		Mat, Basket		Appelez-nous	-
4	W10761334		Screw				$ 12.31
5	WP488234		Screw   (Replaces: W10135792)				$ 6.74
6	2327468		Filler, Foam		Appelez-nous	-
7	W10609690		Spacer, Door Edge (side)		Appelez-nous	-
8	W10609689		Spacer, Door Edge (top And Bottom)				$ 141.04
9	W11625085		Door, Gasket (grey)   (Replaces: W10609687)			Immediately	$ 304.17
10	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.76
11	W10783283		Handle, Door (stainless)   (Replaces: W10541591)				$ 205.37
12	W11797626		Skin, Door (stainless)   (Replaces: W10541579)		Appelez-nous	-
13	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.88
14	W10774208		Assembly, Freezer Basket				$ 421.83
15	W10771111		Nut			Immediately	$ 18.72
16	W10127710		Plate, Handle Door			Immediately	$ 24.70
17	W10109030		Screw				$ 14.62
18	W10001190		Washer				$ 8.38

    View Diagram in Separate Window       Print Part List
